Rear light for BMW 7 Series G70 750eX (2025)

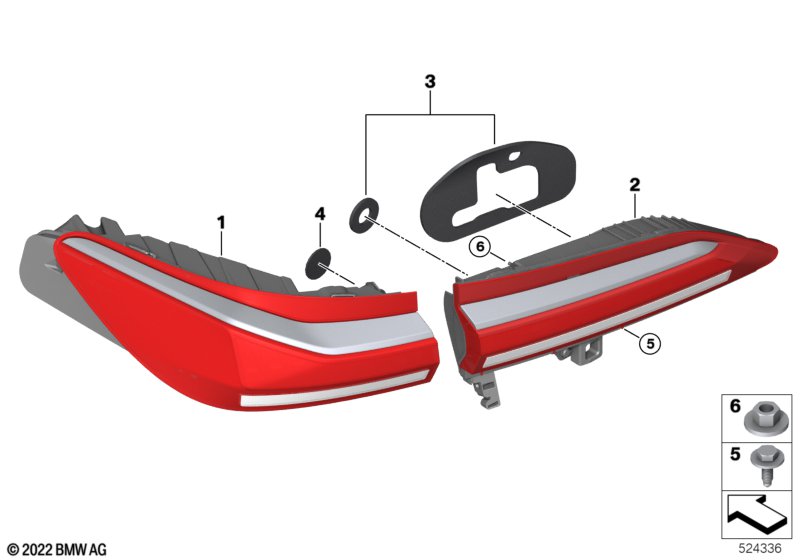

This Rear light technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 01 | Tail light, side panel left | 1 | 63215A45BB1 | Shop at ECS Tuning | ||||||
| 01 | Tail light, side panel right | 1 | 63215A45BB2 | Shop at ECS Tuning | ||||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=Yes |
|||||||||
| 01 | Tail light, side panel left | SHADOW LINE | 1 | 63215A3CD37 | Shop at ECS Tuning | |||||
| 01 | Tail light, side panel right | SHADOW LINE | 1 | 63215A3CD38 | Shop at ECS Tuning | |||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=No |
|||||||||
| 02 | Tail light tailgate left | 1 | 63215A45BA5 | Shop at ECS Tuning | ||||||
| 02 | Tail light tailgate right | 1 | 63215A45BA6 | Shop at ECS Tuning | ||||||
| For vehicles with M Shadow Line with expanded scope |
S7M9A=Yes |
|||||||||
| 02 | Tail light tailgate left | SHADOW LINE | 1 | 63215A3CD33 | Shop at ECS Tuning | |||||
| 02 | Tail light tailgate right | SHADOW LINE | 1 | 63215A3CD34 | Shop at ECS Tuning | |||||
| 03 | Kit sealing elements left | 1 | 63215A649A5 | Shop at ECS Tuning | ||||||
| 03 | Kit sealing elements right | 1 | 63215A649A6 | Shop at ECS Tuning | ||||||
| 04 | Adhesive pad | D=1,6MM | 2 | 63215A36289 | NoS | Shop at ECS Tuning | ||||
| 04 | Adhesive pad | D=1,0MM | 2 | 63215A36290 | NoS | Shop at ECS Tuning | ||||
| 04 | Adhesive pad | D=0,5MM | 2 | 63215A36291 | NoS | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X16 ZNS3 | 6 | 07119905577 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M5-8-ZNNIV SI | 6 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
