Auxiliary turn signal lamp/s outer for BMW 7 Series G70 750eX (2024)

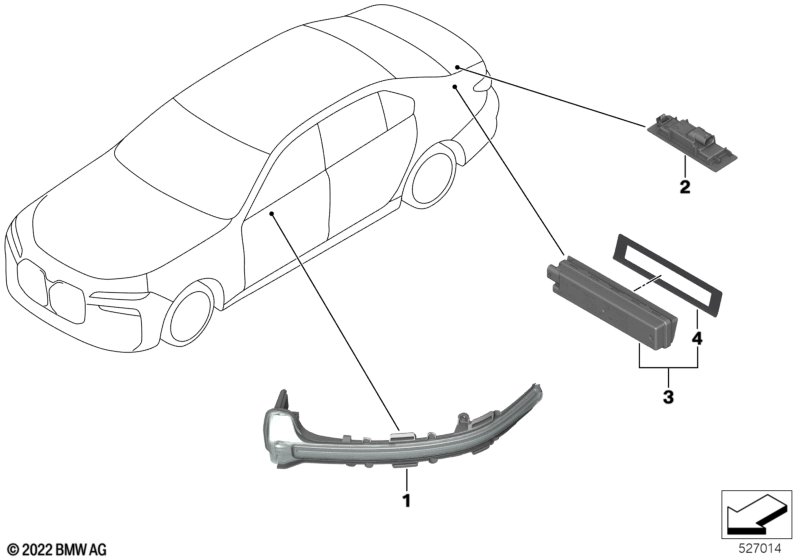

This Auxiliary turn signal lamp/s outer technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side repeater exterior mirror left | 1 | 51169451951 | Shop at ECS Tuning | ||||||
| 01 | Side repeater exterior mirror right | 1 | 51169451952 | Shop at ECS Tuning | ||||||
| 02 | License plate lamp, LED | 2 | 63269481840 | Shop at ECS Tuning | ||||||
| For vehicles with Trailer coupling |
S3ACA=No |
|||||||||
| 03 | Center light | 1 | 05/2025 | 63219464591 | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
S3ACA=Yes |
|||||||||
| 03 | Center light | 1 | 05/2025 | 63215A24F56 | Shop at ECS Tuning | |||||
| 04 | Adhesive pad | 1 | 63215A5B468 | Shop at ECS Tuning | ||||||
