Reflector for BMW 7 Series G70 740d (2023)

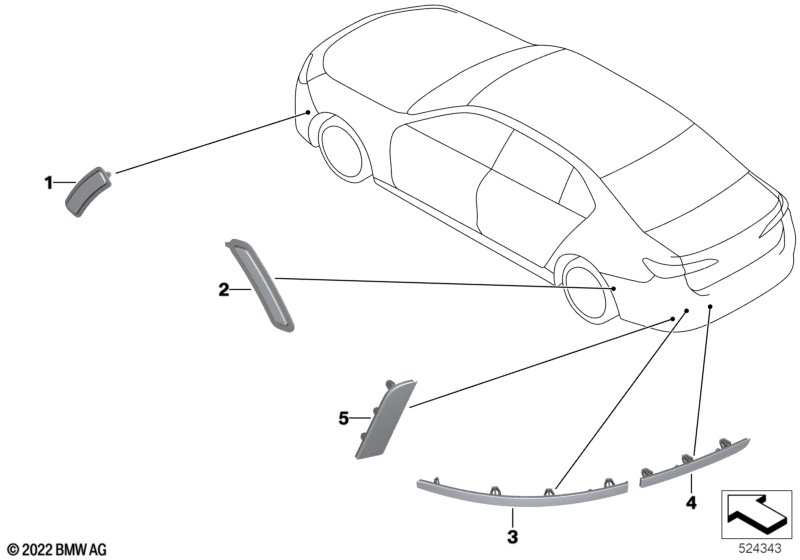

This Reflector technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=No |
|||||||||
| 03 | Rear reflector rear outer left | 1 | 63149464195 | Shop at ECS Tuning | ||||||
| 03 | Rear reflector rear outer right | 1 | 63149464196 | Shop at ECS Tuning | ||||||
| 04 | Rear reflector rear left | 1 | 63145A097B1 | Shop at ECS Tuning | ||||||
| 04 | Rear reflector right rear | 1 | 63145A097B2 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 05 | Rear reflector left | M | 1 | 63148084151 | Shop at ECS Tuning | |||||
| 05 | Rear reflector right | M | 1 | 63148084152 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 740d Reflector?
- This technical diagram illustrates the Reflector within the Lighting group for the 7 Series G70 740d produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Rear reflector rear outer left (Part #63149464195).
- Which models use the hardware listed in this Reflector?
- The hardware and components featured in the Reflector are specific to the 7 Series G70 740d produced during 2023. These technical specifications ensure that parts like the Rear reflector rear outer left (63149464195) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reflector assembly?
- Each item in the Reflector corresponds to the numbered list below the illustration. For the 7 Series G70 740d, you can identify the Rear reflector rear outer left by locating its position on the schematic, which then links to the official BMW part number 63149464195 for the Lighting section.
