LED module FO conductor control units for BMW 7 Series G70 750eX (2025)

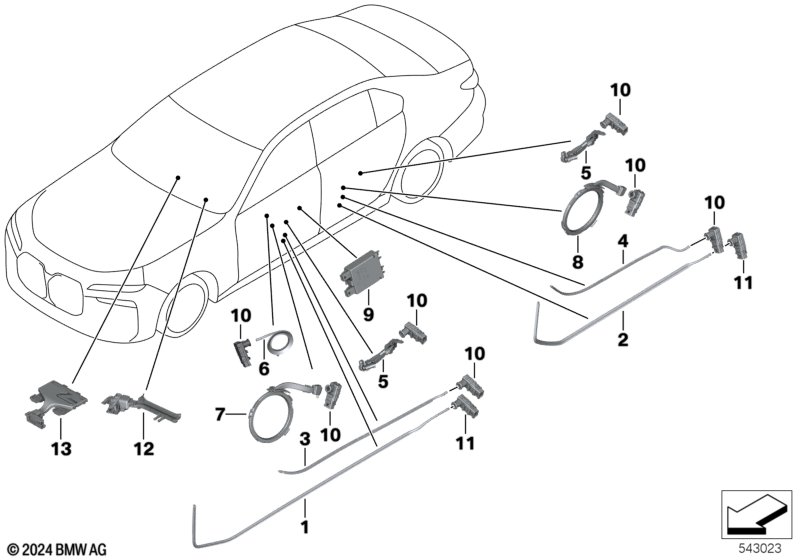

This LED module FO conductor control units technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fiber-optic conductor | LEFT OUTSIDE | 1 | 63315A17485 | Shop at ECS Tuning | |||||
| 01 | Fiber-optic conductor | RIGHT OUTSIDE | 1 | 63315A17486 | Shop at ECS Tuning | |||||
| 02 | Fiber-optic conductor | LEFT OUTSIDE | 1 | 63315A17487 | Shop at ECS Tuning | |||||
| 02 | Fiber-optic conductor | RIGHT OUTSIDE | 1 | 63315A17488 | Shop at ECS Tuning | |||||
| 03 | Fiber-optic conductor | LEFT INSIDE | 1 | 63315A17481 | Shop at ECS Tuning | |||||
| 03 | Fiber-optic conductor | RIGHT INSIDE | 1 | 63315A17482 | Shop at ECS Tuning | |||||
| 04 | Fiber-optic conductor | LEFT INSIDE | 1 | 63315A17483 | Shop at ECS Tuning | |||||
| 04 | Fiber-optic conductor | RIGHT INSIDE | 1 | 63315A17484 | Shop at ECS Tuning | |||||
| 05 | Ambient accent light door | LEFT | 2 | 63315A5A299 | Shop at ECS Tuning | |||||
| 05 | Ambient accent light door | RIGHT | 2 | 63315A5A2A0 | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 06 | Fiber-optic conductor | FRONT LEFT | 1 | 63315A17491 | Shop at ECS Tuning | |||||
| 06 | Fiber-optic conductor | FRONT RIGHT | 1 | 63315A17492 | Shop at ECS Tuning | |||||
| 07 | Fiber-optic conductor | FRONT RIGHT | 1 | 63315A5A2A9 | Shop at ECS Tuning | |||||
| 07 | Fiber-optic conductor | FRONT LEFT | 1 | 63315A5A2B0 | Shop at ECS Tuning | |||||
| 08 | Fiber-optic conductor | ALEV4 MT HINTEN | 1 | 63315A5A2B9 | Shop at ECS Tuning | |||||
| 08 | Fiber-optic conductor | ALEV4 MT HINTEN | 1 | 63315A5A2C0 | Shop at ECS Tuning | |||||
| 09 | Control unit LED interior lights | MD LIN HUB | 2 | 63315A53015 | Shop at ECS Tuning | |||||
| 10 | LED module | HEL 4MM KOD.B2 | 6 | 63315A55022 | Shop at ECS Tuning | |||||
| 11 | LED module | HEL 4MM KOD.D1 | 4 | 63315A55025 | Shop at ECS Tuning | |||||
| 12 | Contour lighting cup holder | LEFT | 1 | 63315A5A279 | Shop at ECS Tuning | |||||
| 12 | Contour lighting cup holder | RIGHT | 1 | 63315A5A280 | Shop at ECS Tuning | |||||
| For vehicles with National version China Trim 7 Series |
L8AAA=Yes |
|||||||||
| 13 | Interior light center console | MIKO CHINA | 1 | 63315A5A289 | Shop at ECS Tuning | |||||
