Headlight for BMW XM G09 XM (2025)

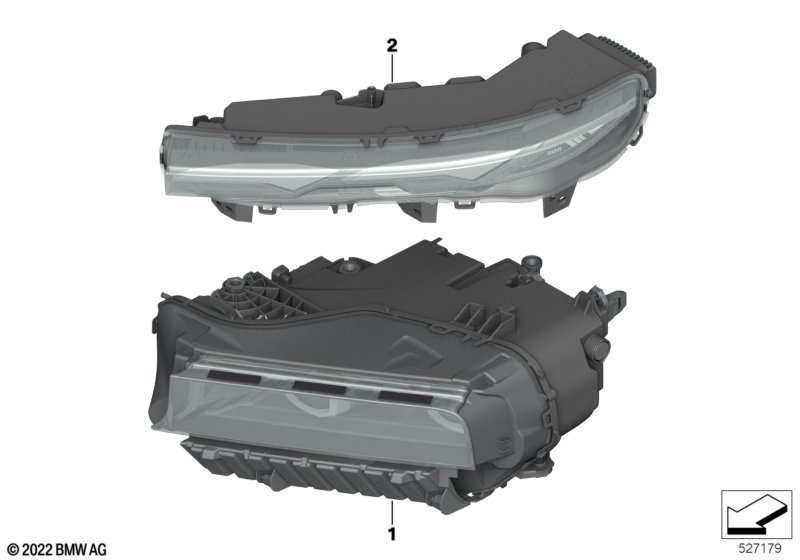

This Headlight technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | LED headlight lower left | 1 | 63115A40891 | Shop at ECS Tuning | ||||||
| 01 | LED headlight lower right | 1 | 63115A40892 | Shop at ECS Tuning | ||||||
| Please note service measure SEL-SEL-P-63-20000831161261 ! |
||||||||||
| 02 | LED headlight upper left | 1 | 63115A9CF97 | Shop at ECS Tuning | ||||||
| 02 | LED headlight upper right | 1 | 63115A9CF98 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Headlight?
- This technical diagram illustrates the Headlight within the Lighting group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the LED headlight lower left (Part #63115A40891).
- Which models use the hardware listed in this Headlight?
- The hardware and components featured in the Headlight are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the LED headlight lower left (63115A40891) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight assembly?
- Each item in the Headlight corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the LED headlight lower left by locating its position on the schematic, which then links to the official BMW part number 63115A40891 for the Lighting section.
