Fiber-optic conductor, vehicle interior for BMW XM G09 XM (2025)

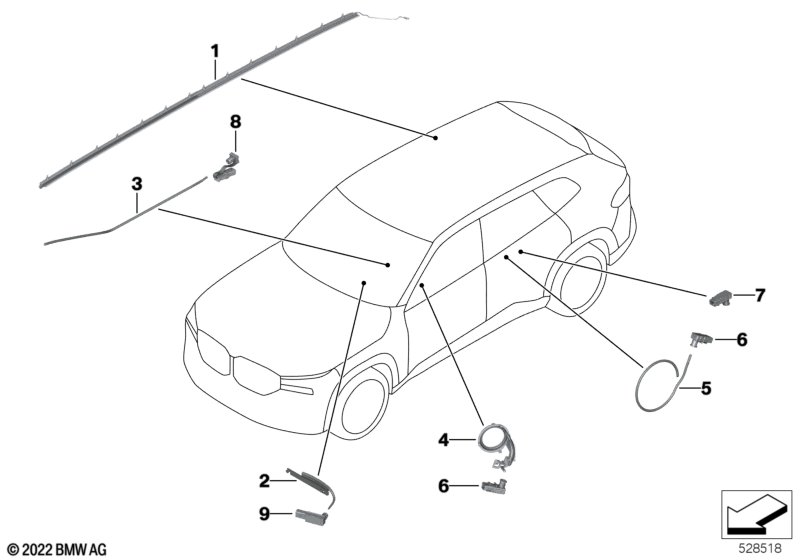

This Fiber-optic conductor, vehicle interior technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | POS 3 fiber-optic conductor cannot be replaced individually. Reference to HG 51 decorative trim center console |
|||||||||
| Fiber-optic conductor storage compartment |
||||||||||
| 02 | Fiber-optic cond.storage compart.light. | 1 | 12/2022 | 63315A88653 | Shop at ECS Tuning | |||||
| 04 | LED module speaker lighting | ALEV4 HOCHTONER | 1 | 12/2022 | 63315A5A239 | Shop at ECS Tuning | ||||
| 04 | LED module speaker lighting | ALEV4 HOCHTONER | 1 | 12/2022 | 63315A5A250 | Shop at ECS Tuning | ||||
| 05 | LED module speaker lighting | ALEV4 MITTELTON | 2 | 12/2022 | 63315A5A240 | Shop at ECS Tuning | ||||
| 05 | LED module speaker lighting | ALEV4 MITTELTON | 2 | 12/2022 | 63315A5A249 | Shop at ECS Tuning | ||||
| 06 | LED module | HEL 4MM KOD.B2 | 7 | 12/2022 | 63315A55022 | Shop at ECS Tuning | ||||
| 07 | LED module | HEL 4MM KOD.D1 | 8 | 12/2022 | 63315A55025 | Shop at ECS Tuning | ||||
| Center console contour lighting LT/RT | ||||||||||
| 08 | LED module | FLEX LIN KOD.B2 | 2 | 12/2022 | 63315A884A8 | Shop at ECS Tuning | ||||
| Storage tray center armrest | ||||||||||
| 09 | LED module | SCHWARZ | 1 | 12/2022 | 63319475836 | Shop at ECS Tuning | ||||
