Rear light for BMW 5 Series G60 Sedan 550eX (2025)

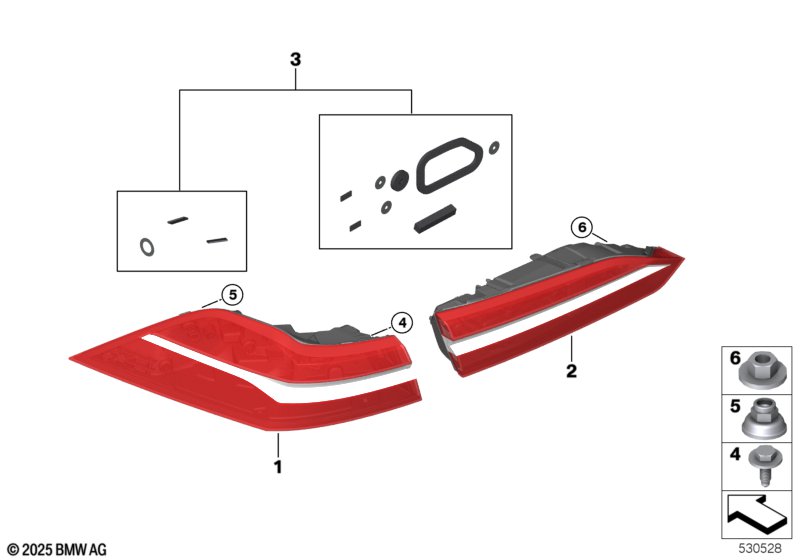

This Rear light technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 550eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE |
S3MFA=No |
|||||||||
| 01 | Rear light in the side panel, left | US | 1 | 63214B0F7D5 | Shop at ECS Tuning | |||||
| 01 | Tail light, side panel left | US | 1 | 63215A01AC7 | Shop at ECS Tuning | |||||
| 01 | Rear light in the side panel, right | US | 1 | 63214B0F7D6 | Shop at ECS Tuning | |||||
| 01 | Tail light, side panel right | US | 1 | 63215A01AC8 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE |
S3MFA=Yes |
|||||||||
| 01 | Rear light in the side panel, left | US/SHAD.LINE | 1 | 63214B0F7E1 | Shop at ECS Tuning | |||||
| 01 | Tail light, side panel left | US/SHAD.LINE | 1 | 63218086053 | Shop at ECS Tuning | |||||
| 01 | Rear light in the side panel, right | US/SHAD.LINE | 1 | 63214B0F7E2 | Shop at ECS Tuning | |||||
| 01 | Tail light, side panel right | US/SHAD.LINE | 1 | 63218086054 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE |
S3MFA=No |
|||||||||
| 02 | Tail light tailgate left | US | 1 | 63215A01AD5 | Shop at ECS Tuning | |||||
| 02 | Tail light tailgate right | US | 1 | 63215A01AD6 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE |
S3MFA=Yes |
|||||||||
| 02 | Tail light tailgate left | US/SHAD.LINE | 1 | 63218086057 | Shop at ECS Tuning | |||||
| 02 | Tail light tailgate right | US/SHAD.LINE | 1 | 63218086058 | Shop at ECS Tuning | |||||
| For parts 1 + 2 | ||||||||||
| 03 | Kit seals tail light left | 1 | 63215A6A2F1 | Shop at ECS Tuning | ||||||
| 03 | Kit seals tail light right | 1 | 63215A6A2F2 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt | M6X16 ZNS3 | 4 | 07119905577 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M6 | 2 | 63217465383 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M5-8-ZNNIV SI | 6 | 07129904381 | $0.64 | Shop at ECS Tuning | ||||
