Auxiliary turn signal lamp/s outer for BMW 5 Series G60 Sedan 530e (2025)

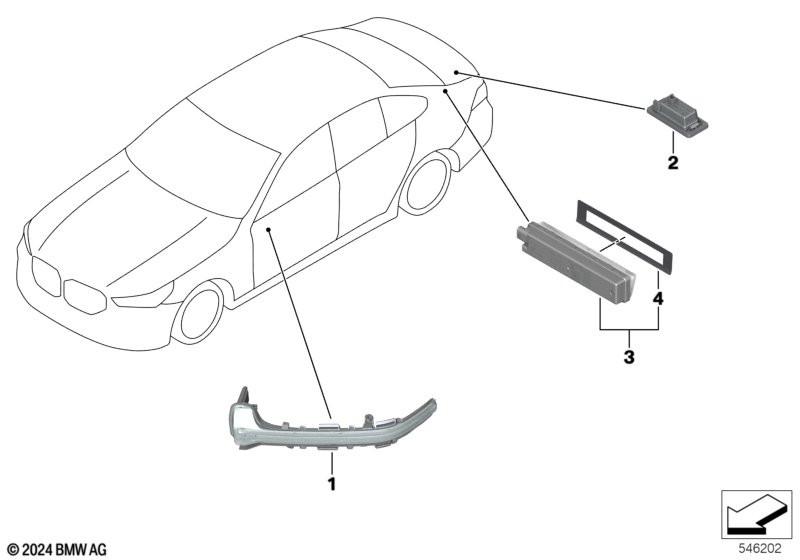

This Auxiliary turn signal lamp/s outer technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side repeater exterior mirror left | 1 | 51169451951 | Shop at ECS Tuning | ||||||
| 01 | Side repeater exterior mirror right | 1 | 51169451952 | Shop at ECS Tuning | ||||||
| 02 | License plate lamp, LED | 2 | 63269481842 | Shop at ECS Tuning | ||||||
| 03 | Center light | 1 | 63219464591 | Shop at ECS Tuning | ||||||
| 04 | Adhesive pad | 1 | 63215A5B468 | Shop at ECS Tuning |
