Headlight for BMW 4 Series G22 Coupé LCI 420d (2025)

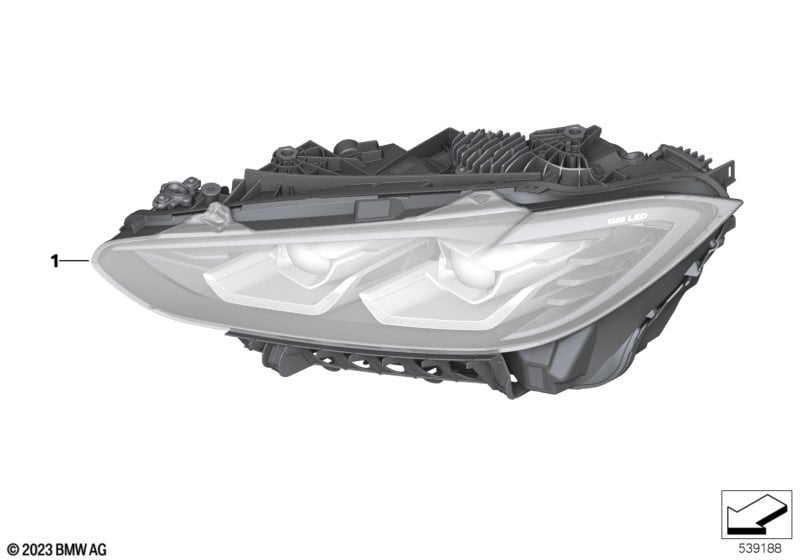

This Headlight technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé LCI 420d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S3MFA=No S552A=Yes S8LHA=No |
|||||||||
| 01 | Headlight, LED technology, left | AHL | 1 | 63115B35E01 | Shop at ECS Tuning | |||||
| 01 | Headlight with LED technology, right | AHL | 1 | 63115B35E02 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S3MFA=Yes S552A=Yes S8LHA=No |
|||||||||
| 01 | Headlight, LED technology, left | BLACK-LINE | 1 | 63115B35ED3 | Shop at ECS Tuning | |||||
| 01 | Headlight with LED technology, right | BLACK-LINE | 1 | 63115B35F30 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S3MFA=No S552A=Yes S8LHA=Yes |
|||||||||
| 01 | Headlight, LED technology, left | AHL | 1 | 63115B35E07 | Shop at ECS Tuning | |||||
| 01 | Headlight with LED technology, right | AHL | 1 | 63115B35E08 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S3MFA=No S552A=No S8LHA=Yes |
|||||||||
| 01 | Headlight, LED technology, left | BASIS | 1 | 63115B35E03 | Shop at ECS Tuning | |||||
| 01 | Headlight with LED technology, right | BASIS | 1 | 63115B35E04 | Shop at ECS Tuning | |||||
| For vehicles with BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
S3MFA=Yes S552A=Yes S8LHA=Yes |
|||||||||
| 01 | Headlight, LED technology, left | BLACK-LINE | 1 | 63115B35F59 | Shop at ECS Tuning | |||||
| 01 | Headlight with LED technology, right | BLACK-LINE | 1 | 63115B35F60 | Shop at ECS Tuning | |||||
| For vehicles with National version China and BMW INDIVIDUAL LIGHTS SHADOW LINE and Adaptive LED headlight and Country-spec.ctrl Hong Kong/Macao 04142 |
L8AAA=No S3MFA=No S552A=No S8LHA=No |
|||||||||
| 01 | Headlight, LED technology, left | BASIS | 1 | 63115B35DF9 | Shop at ECS Tuning | |||||
| 01 | Headlight with LED technology, right | BASIS | 1 | 63115B35E00 | Shop at ECS Tuning | |||||
