Interior light for BMW 4 Series G23 Convertible LCI 420i (2025)

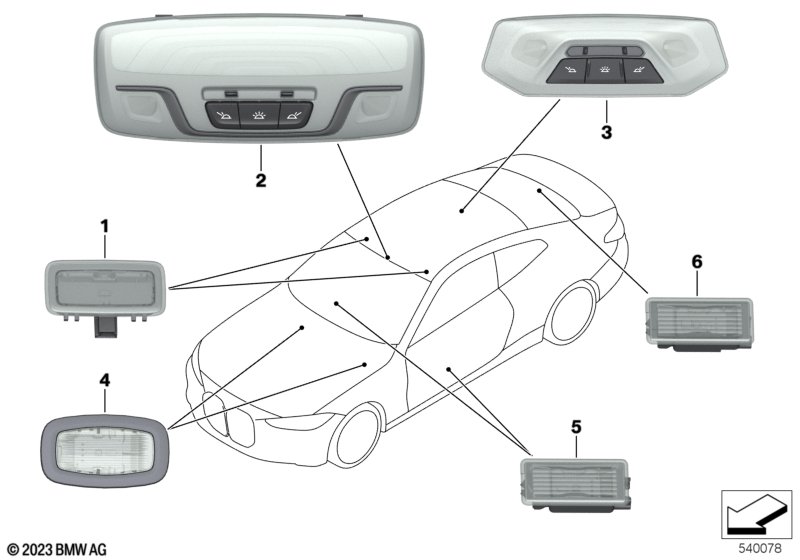

This Interior light technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mirror light, LED | MSA 3.5K H | 2 | 63319472764 | Shop at ECS Tuning | |||||
| Windshield panel front | ||||||||||
| 02 | Interior reading light LED front | 1 | 63317910811 | Shop at ECS Tuning | ||||||
| 04 | Footwell lamp LED | LIN-RGB KOD D | 2 | 63319891435 | Shop at ECS Tuning | |||||
| Glove compartment | ||||||||||
| 05 | LED for interior lamp | 1 | 63319472763 | Shop at ECS Tuning | ||||||
| 06 | Luggage compartment lamp LED | 1 | 63315A42413 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI 420i Interior light?
- This technical diagram illustrates the Interior light within the Lighting group for the 4 Series G23 Convertible LCI 420i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Mirror light, LED (Part #63319472764).
- Which models use the hardware listed in this Interior light?
- The hardware and components featured in the Interior light are specific to the 4 Series G23 Convertible LCI 420i produced during 2025. These technical specifications ensure that parts like the Mirror light, LED (63319472764) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Interior light assembly?
- Each item in the Interior light corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI 420i, you can identify the Mirror light, LED by locating its position on the schematic, which then links to the official BMW part number 63319472764 for the Lighting section.
