Interior lights for BMW 3 Series E46 328i (2000)

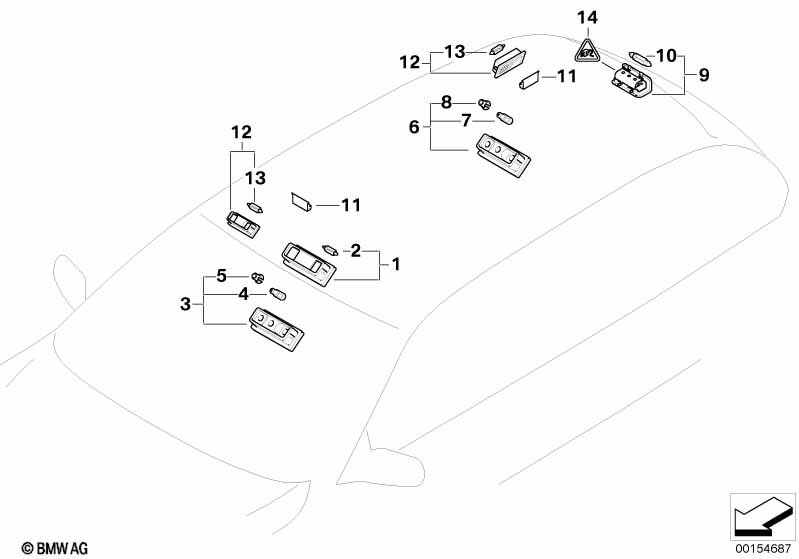

This Interior lights technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interior light | 1 | 63316962141 | $62.15 | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 03 | Interior reading light front | 1 | 63316962046 | $114.58 | Shop at ECS Tuning | |||||
| 04 | Bulb | 12V 6W XENON | 2 | 63217160908 | $7.94 | Shop at ECS Tuning | ||||
| 05 | Bulb socket | 2 | 63258389736 | $2.42 | Shop at ECS Tuning | |||||
| 06 | Interior reading light, rear center | 1 | 63316961998 | Shop at ECS Tuning | ||||||
| 07 | Bulb | 12V 6W XENON | 2 | 63217160908 | $7.94 | Shop at ECS Tuning | ||||
| 08 | Bulb socket | 2 | 63258389736 | $2.42 | Shop at ECS Tuning | |||||
| 09 | Luggage compartment light/Trunk lid | 1 | 63316962569 | $11.40 | Shop at ECS Tuning | |||||
| 10 | Bulb | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 11 | Clamp | 2 | 51448181426 | $0.61 | Shop at ECS Tuning | |||||
| 12 | Left mirror lamp | SCHWARZ | 1 | 63316961991 | $10.07 | Shop at ECS Tuning | ||||
| 12 | Right mirror lamp | SCHWARZ | 1 | 63316961992 | $10.07 | Shop at ECS Tuning | ||||
| 12 | Left mirror lamp | HELLGRAU | 1 | 63316961995 | $10.07 | ENDED | Shop at ECS Tuning | |||
| 12 | Right mirror lamp | HELLGRAU | 1 | 63316961996 | $10.07 | Shop at ECS Tuning | ||||
| 12 | Left mirror lamp | HELLBEIGE | 1 | 63316962001 | $10.07 | Shop at ECS Tuning | ||||
| 12 | Right mirror lamp | HELLBEIGE | 1 | 63316962002 | $10.07 | ENDED | Shop at ECS Tuning | |||
| 12 | Left mirror lamp | PASTELLGRÜN | 1 | 63316962003 | ENDED | Shop at ECS Tuning | ||||
| 12 | Right mirror lamp | PASTELLGRÜN | 1 | 63316962004 | $10.33 | Shop at ECS Tuning | ||||
| 13 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 14 | Universal socket housing uncoded | 3 POL. | 2 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
