Headlight for BMW 5 Series G90 M5 M5 (2025)

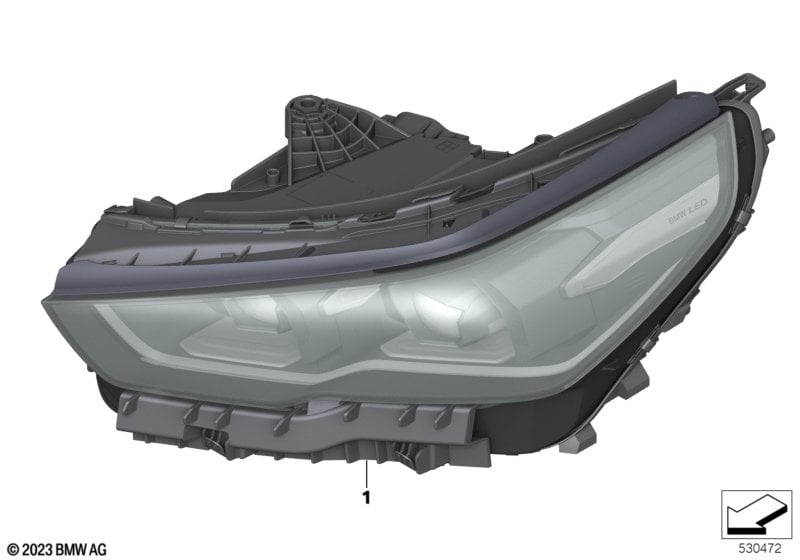

This Headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Country-spec.ctrl Hong Kong/Macao 04142 |
S8LHA=No |
|||||||||
| 01 | LED headlight AHL left | LHD/SHAD.LINE | 1 | 63115A87913 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | LHD/SHAD.LINE | 1 | 63115A87914 | Shop at ECS Tuning | |||||
| For vehicles with Country-spec.ctrl Hong Kong/Macao 04142 |
S8LHA=Yes |
|||||||||
| 01 | LED headlight AHL left | RHD/SHAD.LINE | 1 | 63115A87921 | Shop at ECS Tuning | |||||
| 01 | LED headlight AHL right | RHD/SHAD.LINE | 1 | 63115A87922 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G90 M5 M5 Headlight?
- This technical diagram illustrates the Headlight within the Lighting group for the 5 Series G90 M5 M5 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the LED headlight AHL left (Part #63115A87913).
- Which models use the hardware listed in this Headlight?
- The hardware and components featured in the Headlight are specific to the 5 Series G90 M5 M5 produced during 2025. These technical specifications ensure that parts like the LED headlight AHL left (63115A87913) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight assembly?
- Each item in the Headlight corresponds to the numbered list below the illustration. For the 5 Series G90 M5 M5, you can identify the LED headlight AHL left by locating its position on the schematic, which then links to the official BMW part number 63115A87913 for the Lighting section.
