Single components for headlight for BMW 2 Series F74 Gran Coupé 220 (2025)

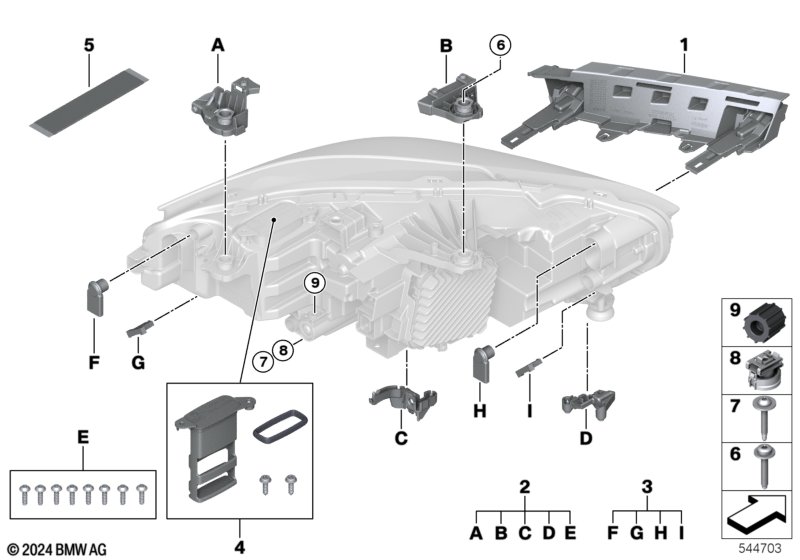

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket headlight left | 1 | 63115A9D107 | Shop at ECS Tuning | ||||||
| 01 | Bracket headlight right | 1 | 63115A9D108 | Shop at ECS Tuning | ||||||
| 02 | Repair kit, left headlight | 1 | 63115A9D105 | Shop at ECS Tuning | ||||||
| 02 | Repair kit, right headlight | 1 | 63115A9D106 | Shop at ECS Tuning | ||||||
| 03 | Set grommets | BASIS | 1 | 63115A9D104 | NoS | Shop at ECS Tuning | ||||
| 04 | Kit, drying box | 1 | 63115B55577 | Shop at ECS Tuning | ||||||
| 05 | Dessicant bag | 35G | 1 | 63115B55559 | Shop at ECS Tuning | |||||
| 06 | Countersunk screw | M6X35 | 4 | 07119907286 | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M6 X 46 | 2 | 07147401706 | Shop at ECS Tuning | |||||
| 08 | Spacer | 2 | 63117419740 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
