Electric additional fan for BMW 5 Series E34 525td (1995)

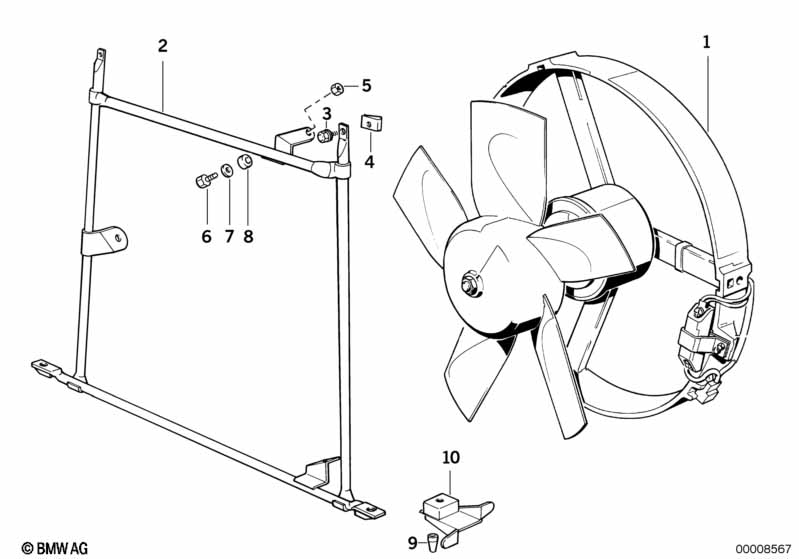

This Electric additional fan technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 02 | Additionel blower support | 1 | 64548390957 | $111.32 | Shop at ECS Tuning | |||||
| 03 | Hex head screw | ST6,3X13-F-Z2 | 2 | 07119916964 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 04 | Body nut | B6,3-6 | 2 | 16111152613 | $0.35 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 06 | Fit bolt | M5 | 3 | 17401354522 | $1.17 | Shop at ECS Tuning | ||||
| 07 | Washer | 3 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 08 | Rubber grommet | 3 | 17401362128 | $3.37 | Shop at ECS Tuning | |||||
| 09 | Rubber Mounting | 2 | 64531378239 | $1.82 | Shop at ECS Tuning | |||||
| 10 | Bracket condenser | 2 | 41118137331 | $4.41 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525td Electric additional fan?
- This technical diagram illustrates the Electric additional fan within the Heater and Air Conditioning group for the 5 Series E34 525td produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Additionel blower support (Part #64548390957).
- Which models use the hardware listed in this Electric additional fan?
- The hardware and components featured in the Electric additional fan are specific to the 5 Series E34 525td produced during 1995. These technical specifications ensure that parts like the Additionel blower support (64548390957) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electric additional fan assembly?
- Each item in the Electric additional fan corresponds to the numbered list below the illustration. For the 5 Series E34 525td, you can identify the Additionel blower support by locating its position on the schematic, which then links to the official BMW part number 64548390957 for the Heater and Air Conditioning section.
