Outflow nozzles/covers for BMW 3 Series E21 320i (1977)

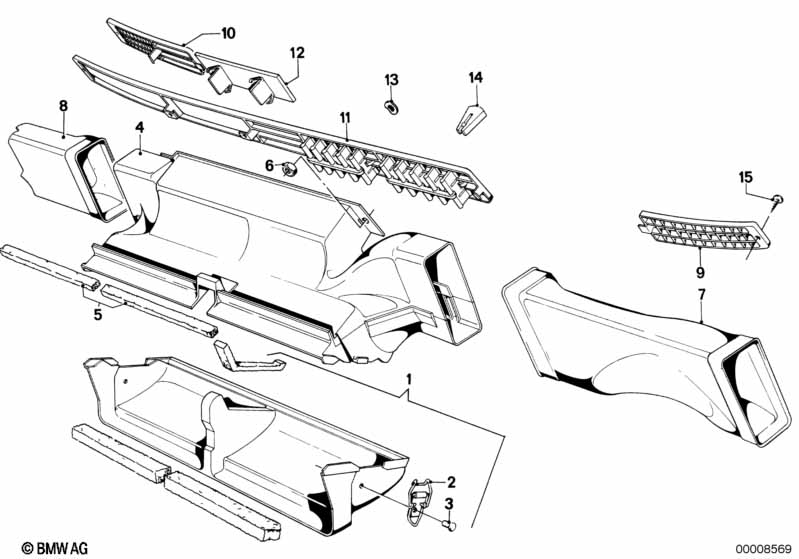

This Outflow nozzles/covers technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering piece | 1 | 09/1979 | 64221358318 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lock | 2 | 09/1979 | 64221358425 | $2.81 | ENDED | Shop at ECS Tuning | |||
| 03 | Rivet | B4X6 | 2 | 09/1979 | 07119949223 | ENDED | Shop at ECS Tuning | |||
| 04 | Connector, center | 1 | 05/1976 | 09/1979 | 64221361693 | ENDED | Shop at ECS Tuning | |||
| 05 | Sealing strip | 2 | 09/1979 | 64221358420 | $0.81 | ENDED | Shop at ECS Tuning | |||
| 06 | Collar nut | 1 | 09/1979 | 51451819789 | ENDED | Shop at ECS Tuning | ||||
| 07 | Air channel left | 1 | 09/1979 | 64221358443 | $6.36 | ENDED | Shop at ECS Tuning | |||
| 08 | Air channel right | 1 | 09/1979 | 64221358444 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fresh air grille, left | 1 | 09/1979 | 64221362765 | $5.69 | ENDED | Shop at ECS Tuning | |||
| 10 | Fresh air grille, right | 1 | 09/1979 | 64221362773 | $6.51 | ENDED | Shop at ECS Tuning | |||
| 11 | Fresh air grille center | 1 | 09/1979 | 64221361596 | $30.70 | Shop at ECS Tuning | ||||
| 12 | Cover | 1 | 09/1979 | 64221832320 | ENDED | Shop at ECS Tuning | ||||
| 13 | Wave washer | 4 | 09/1979 | 64221363937 | $0.36 | ENDED | Shop at ECS Tuning | |||
| 14 | Button | 1 | 09/1979 | 64221361209 | $0.32 | ENDED | Shop at ECS Tuning | |||
| 15 | Recessed oval head sheet-metal screw | ST2,9X13 | 6 | 07119902412 | $1.30 | Shop at ECS Tuning |
