Water hose inlet/outlet for BMW 3 Series E21 320 (1979)

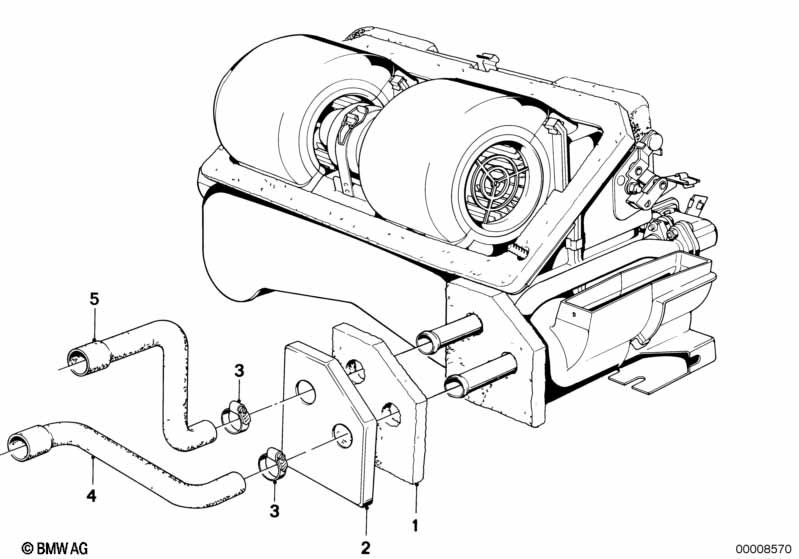

This Water hose inlet/outlet technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | TOO LONG HOSES MUST BE CUT ACCORDING TO THE ORIGINAL PART |
|||||||||
| 01 | Gasket | 1 | 08/1979 | 64111355265 | $8.11 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering plate | 1 | 08/1979 | 64111355266 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L23-29 | X | 08/1979 | 07129952111 | $0.93 | ENDED | Shop at ECS Tuning | ||
| 03 | Hose clamp | L16-30 | X | 08/1979 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 03 | Hose clamp | L28-33 | X | 08/1979 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
| 04 | Hose, inlet | 1 | 08/1979 | 64211364764 | $19.89 | Shop at ECS Tuning | ||||
| 05 | Return hose | D18MM | 1 | 08/1979 | 64211360653 | $12.39 | ENDED | Shop at ECS Tuning | ||
| 05 | Return hose | D20MM | 1 | 08/1979 | 64211364774 | $22.60 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
