Rear heater duct for BMW 5 Series E12 525 (1976)

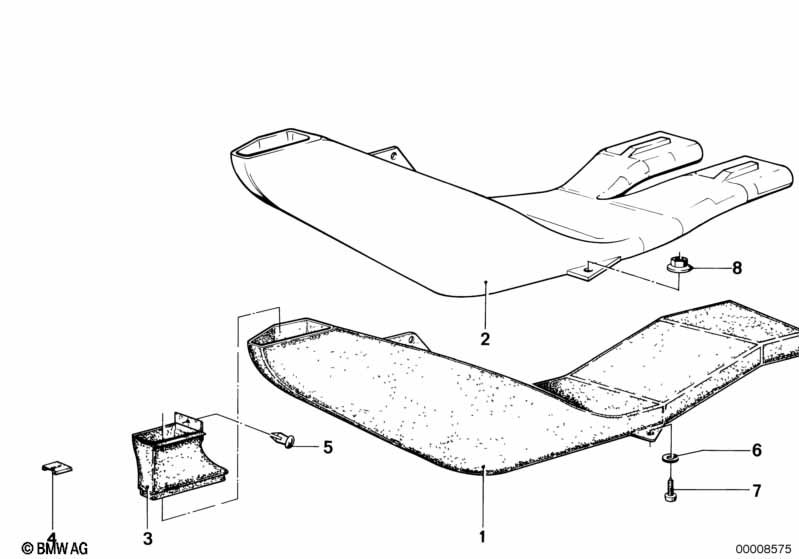

This Rear heater duct technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO REAR COMPARTMENT HEATING | ||||||||||
| 01 | Heater duct rear left | 1 | 08/1979 | 64221821457 | ENDED | Shop at ECS Tuning | ||||
| 01 | Heater duct rear right | 1 | 08/1979 | 64221821458 | ENDED | Shop at ECS Tuning | ||||
| 03 | Intermediate piece | 1 | 64221356161 | $6.88 | ENDED | Shop at ECS Tuning | ||||
| 03 | Intermediate piece | 1 | 64221356162 | ENDED | Shop at ECS Tuning | |||||
| 04 | Clamp | 2 | 64221356296 | $0.40 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | 2 | 64221356171 | $0.28 | Shop at ECS Tuning | |||||
| 06 | Washer | 10X5,3X1-200 HV | 4 | 08/1979 | 07119904206 | Shop at ECS Tuning | ||||
| 06 | Washer | 5.3-140 HV-ZNS | 4 | 08/1979 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | ST4,8X16 Z2 | 4 | 08/1979 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
