Air channel for BMW 7 Series E23 735i (1989)

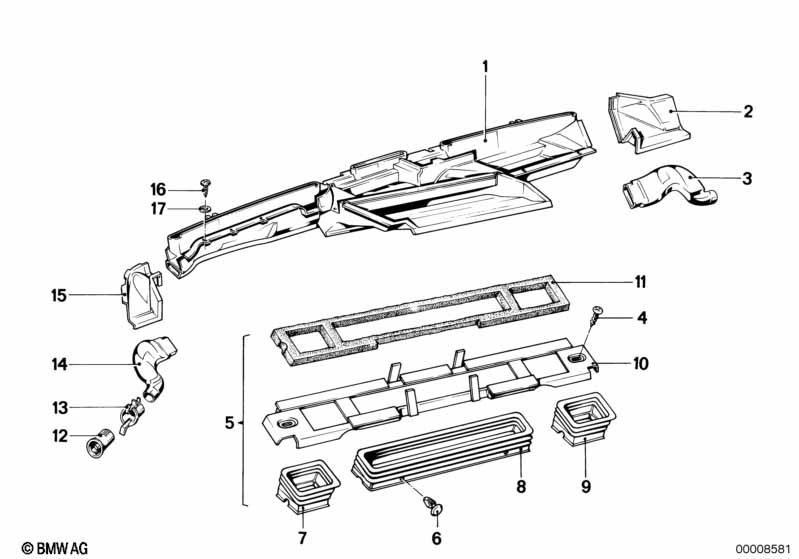

This Air channel technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air channel center | 1 | 01/1983 | 51451909489 | ENDED | Shop at ECS Tuning | ||||
| 02 | Air channel right | 1 | 01/1983 | 51451909488 | $5.19 | ENDED | Shop at ECS Tuning | |||
| 03 | Air channel right | 1 | 51451852572 | $7.48 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,2X13-Z1 | 2 | 07119907943 | $0.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Sheet metal screw | 4,2X13 | 2 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Connection piece | 1 | 64211362699 | ENDED | Shop at ECS Tuning | |||||
| 06 | Rivet | 4 | 64221356265 | $0.20 | ENDED | Shop at ECS Tuning | ||||
| 07 | Connection piece left | 1 | 64211362707 | $4.22 | ENDED | Shop at ECS Tuning | ||||
| 08 | Connection piece | 1 | 64211362697 | ENDED | Shop at ECS Tuning | |||||
| 09 | Connection piece right | 1 | 64211362708 | $4.22 | ENDED | Shop at ECS Tuning | ||||
| 10 | Carrier | 1 | 64211362696 | $7.71 | ENDED | Shop at ECS Tuning | ||||
| 11 | Gasket | 1 | 64211362698 | $3.45 | ENDED | Shop at ECS Tuning | ||||
| 12 | Air nozzle door ventilation | 2 | 51451907354 | $4.63 | ENDED | Shop at ECS Tuning | ||||
| 13 | Supporting ring | 2 | 51451852607 | $1.03 | ENDED | Shop at ECS Tuning | ||||
| 14 | Air channel left | 1 | 01/1983 | 51451909487 | $6.47 | ENDED | Shop at ECS Tuning | |||
| 15 | Air channel right | 1 | 10/1980 | 51451872325 | ENDED | Shop at ECS Tuning | ||||
| 16 | Screw | B2,9X12 | 8 | 51458391548 | $2.14 | Shop at ECS Tuning | ||||
| 17 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Air channel?
- This technical diagram illustrates the Air channel within the Heater and Air Conditioning group for the 7 Series E23 735i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Air channel center (Part #51451909489).
- Which models use the hardware listed in this Air channel?
- The hardware and components featured in the Air channel are specific to the 7 Series E23 735i produced during 1989. These technical specifications ensure that parts like the Air channel center (51451909489) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air channel assembly?
- Each item in the Air channel corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Air channel center by locating its position on the schematic, which then links to the official BMW part number 51451909489 for the Heater and Air Conditioning section.
