Rear heater duct for BMW 7 Series E23 735i (1982)

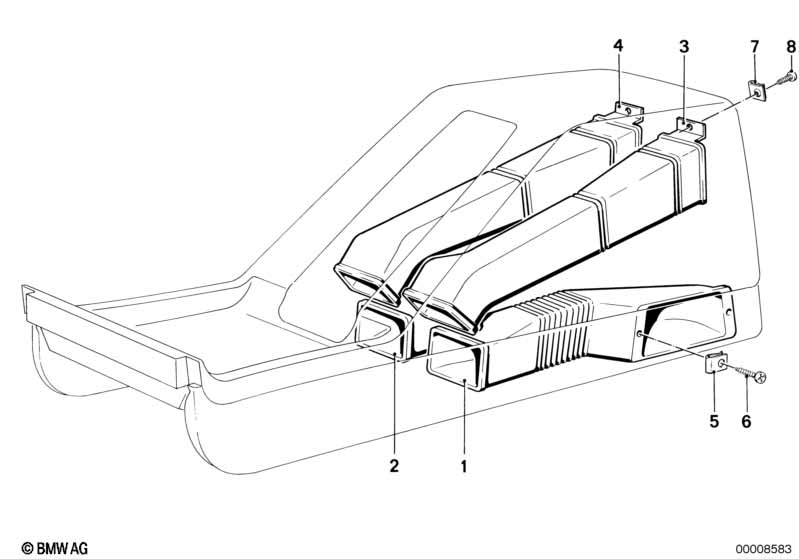

This Rear heater duct technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater duct rear,bottom left | 1 | 08/1979 | 51161874385 | ENDED | Shop at ECS Tuning | ||||
| 02 | Heater duct rear,bottom right | 1 | 08/1979 | 51161874386 | $13.17 | ENDED | Shop at ECS Tuning | |||
| 03 | Heater duct rear,upper left | 1 | 08/1979 | 51161874387 | $11.94 | ENDED | Shop at ECS Tuning | |||
| 04 | Heater duct rear,upper right | 1 | 08/1979 | 51161874388 | $11.94 | ENDED | Shop at ECS Tuning | |||
| 05 | Body nut | ST2,9-2 | 4 | 08/1979 | 07129925704 | ENDED | Shop at ECS Tuning | |||
| 06 | Recessed oval head sheet-metal screw | ST2,9X13 | 4 | 08/1979 | 07119902412 | $1.30 | Shop at ECS Tuning | |||
| 07 | Body nut | B3,9-6 | 4 | 08/1979 | 63261366551 | $1.65 | Shop at ECS Tuning | |||
| 08 | Self tapping screw | 4 | 08/1979 | 34321119239 | $0.27 | Shop at ECS Tuning |
