Water hose inlet/outlet for BMW 7 Series E23 728iS (1986)

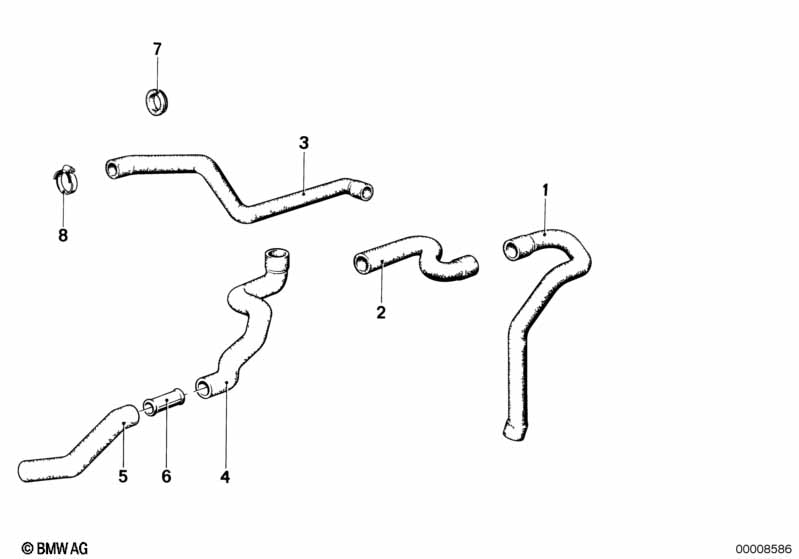

This Water hose inlet/outlet technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | TOO LONG HOSES MUST BE CUT ACCORDING TO THE ORIGINAL PART |
|||||||||
| 01 | Water hose inlet 1 | 1 | 64211363470 | $18.66 | Shop at ECS Tuning | |||||
| 02 | Water hose inlet 2 | 1 | 64211363936 | $18.66 | Shop at ECS Tuning | |||||
| 04 | Return hose | 1 | 04/1981 | 64211368744 | $18.23 | Shop at ECS Tuning | ||||
| 05 | Hose f engine inlet and water valve | 1 | 04/1981 | 64211391386 | $32.95 | Shop at ECS Tuning | ||||
| 06 | Pipe | 1 | 04/1981 | 64211375402 | $3.93 | Shop at ECS Tuning | ||||
| 07 | Rubber grommet | 18MM | 1 | 64211376130 | $1.51 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L28-33 | X | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L32-38 | X | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L16-30 | X | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
