Defroster nozzle for BMW 3 Series E21 320 (1979)

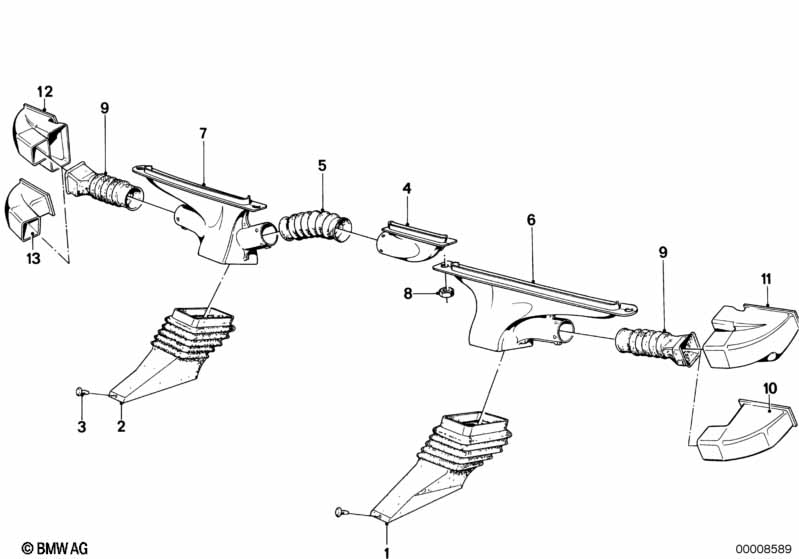

This Defroster nozzle technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection piece left | 1 | 64211358059 | $5.08 | ENDED | Shop at ECS Tuning | ||||
| 02 | Connection piece right | 1 | 64211358060 | $5.08 | ENDED | Shop at ECS Tuning | ||||
| 03 | Plastic rivet | 2 | 64111355863 | $0.18 | Shop at ECS Tuning | |||||
| 04 | Defroster nozzle center | 1 | 64221357728 | $12.50 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hot air hose center | 1 | 64211355749 | $3.13 | Shop at ECS Tuning | |||||
| 06 | Defroster nozzle left | 1 | 64221357729 | $43.14 | ENDED | Shop at ECS Tuning | ||||
| 07 | Defroster nozzle right | 1 | 64221357730 | $43.14 | ENDED | Shop at ECS Tuning | ||||
| 08 | Collar nut | 4 | 51451819789 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hot air hose lateral | 2 | 64211358502 | ENDED | Shop at ECS Tuning | |||||
| 10 | Connector, left | 1 | 08/1979 | 64221359435 | ENDED | Shop at ECS Tuning | ||||
| 12 | Connector, right | 1 | 08/1979 | 64221359434 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
