Heater closing panel for BMW 7 Series E23 735i (1986)

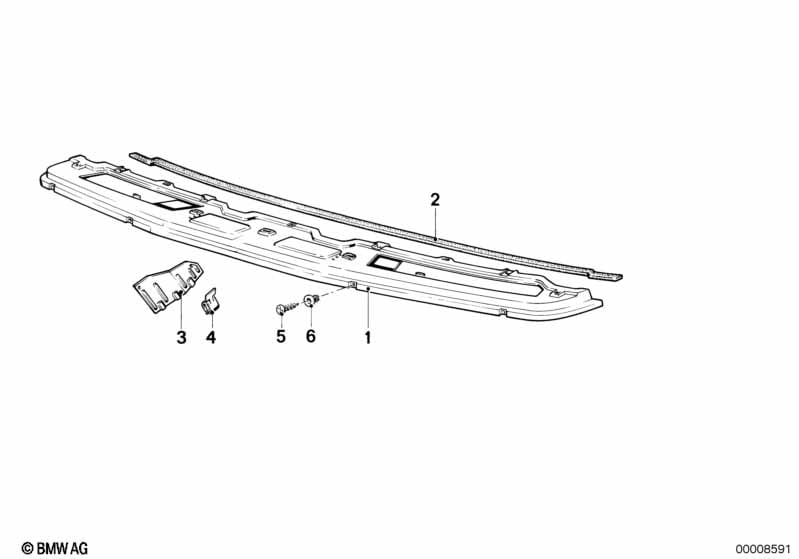

This Heater closing panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

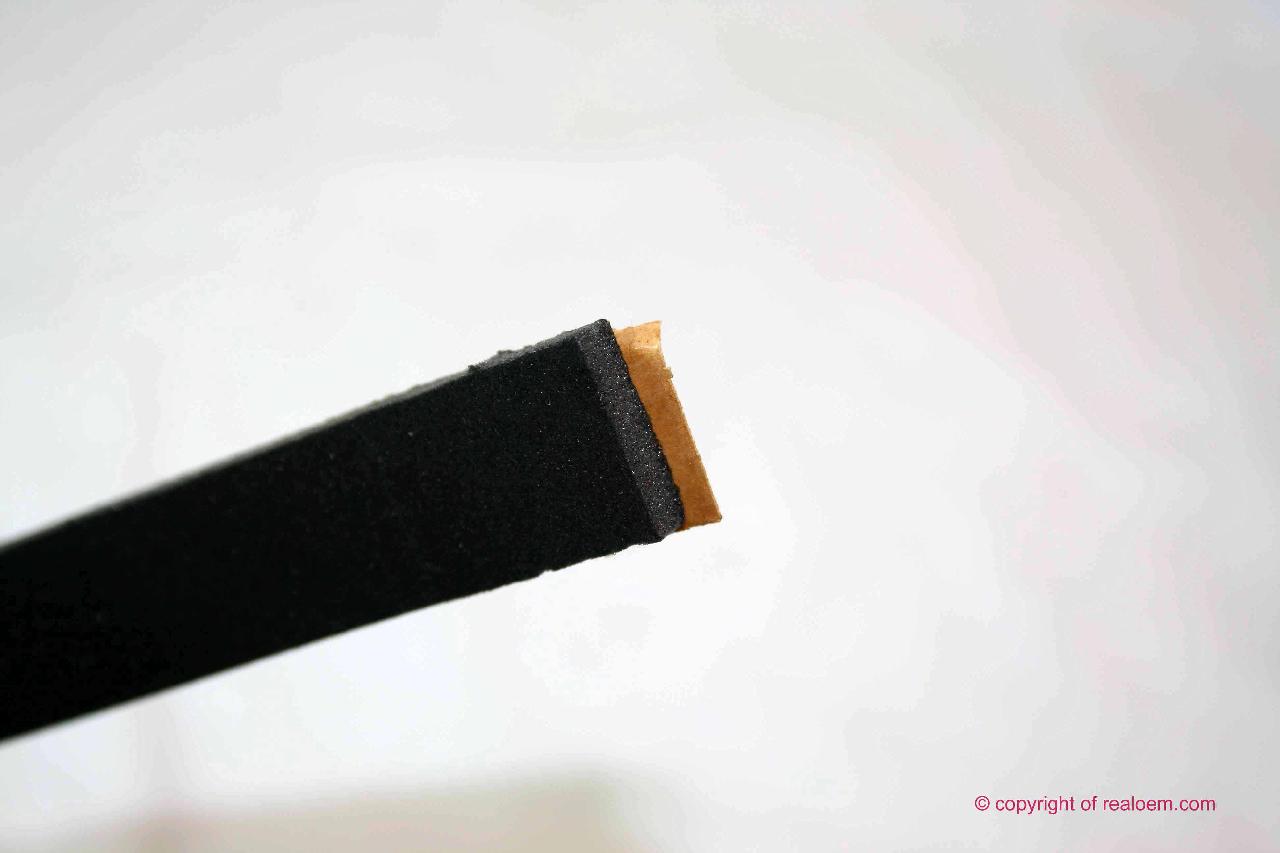

| 02 | Sealing strip | 1 | 51711852672 | $2.38 | Shop at ECS Tuning | |||||

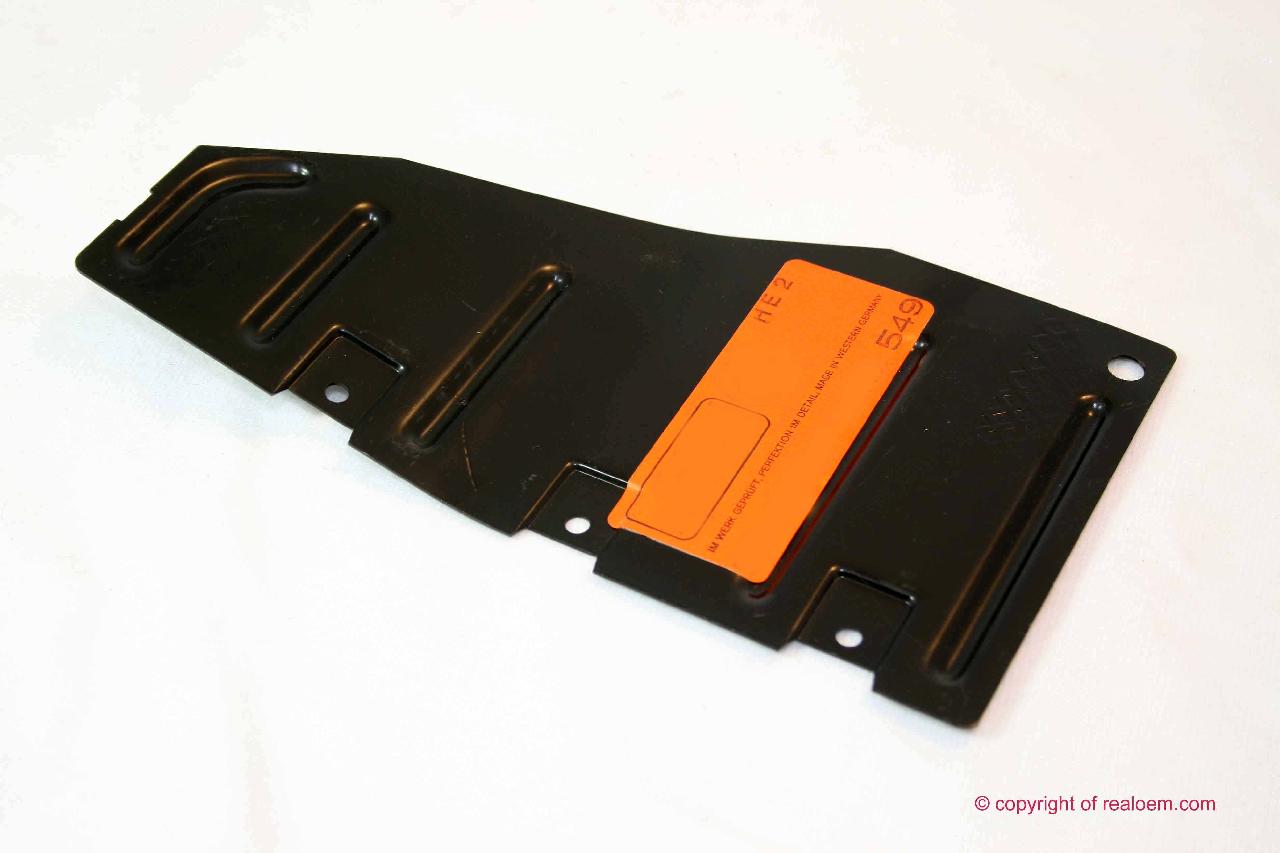

| 03 | Water deflector left | 1 | 51711848549 | $2.74 | ENDED | Shop at ECS Tuning | ||||
| 03 | Water deflector right | 1 | 51711848550 | $2.74 | ENDED | Shop at ECS Tuning | ||||
| 04 | Clamp | 6 | 51711855751 | ENDED | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ST3,9X13 | X | 07147202502 | $0.26 | Shop at ECS Tuning | ||||
| 06 | Expanding nut | ST 3.9 | X | 51711874203 | $0.23 | Shop at ECS Tuning |
