Air cond.syst.-control shaft/covering for BMW 6 Series E24 633CSi (1979)

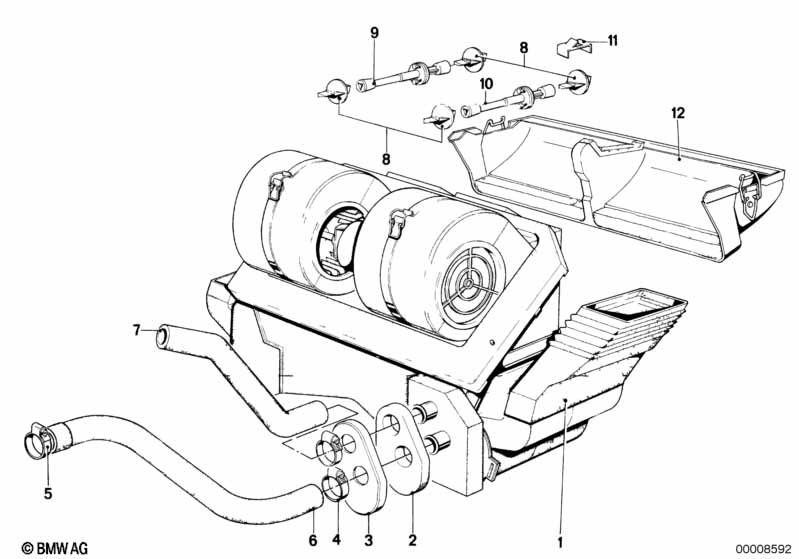

This Air cond.syst.-control shaft/covering technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection piece left | 1 | 64211359573 | $5.47 | ENDED | Shop at ECS Tuning | ||||
| 01 | Connection piece right | 1 | 64211359574 | $5.47 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket | 1 | 09/1982 | 64111355265 | $8.11 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering plate | 1 | 09/1982 | 64111355266 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L16-30 | 2 | 09/1982 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 05 | Hose clamp | L28-33 | 2 | 09/1982 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
| 06 | Hose, inlet | 1 | 09/1980 | 64211364765 | $15.52 | Shop at ECS Tuning | ||||
| 07 | Return hose | 1 | 09/1980 | 64211364770 | $17.68 | Shop at ECS Tuning | ||||
| 08 | Swivel joint | 4 | 09/1982 | 64111361272 | $2.46 | ENDED | Shop at ECS Tuning | |||
| 09 | Control shaft air distribution | 1 | 09/1982 | 64111360772 | ENDED | Shop at ECS Tuning | ||||
| 10 | Guide shaft temperature control | 1 | 09/1982 | 64111360788 | $49.79 | Shop at ECS Tuning | ||||
| 12 | Covering piece | 1 | 09/1982 | 64221358318 | ENDED | Shop at ECS Tuning |
