Water hose inlet/outlet for BMW 5 Series E28 520i (1987)

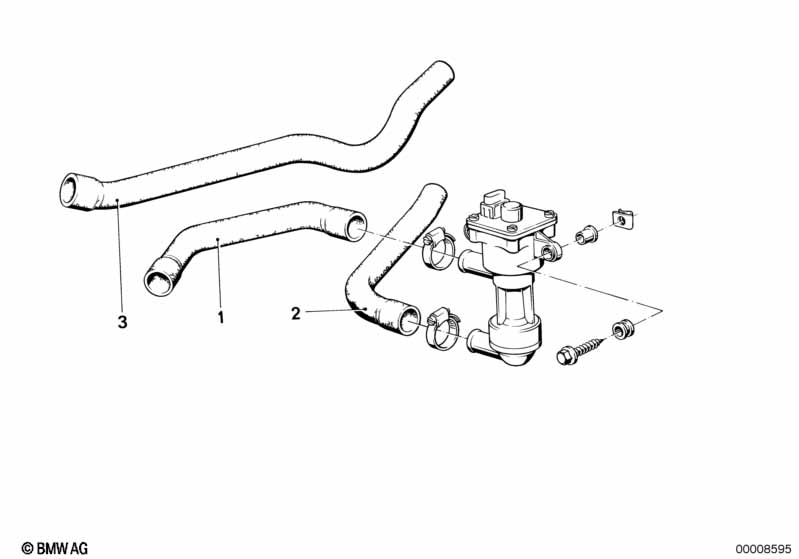

This Water hose inlet/outlet technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | TOO LONG HOSES MUST BE CUT ACCORDING TO THE ORIGINAL PART |
|||||||||
| 01 | Water hose inlet 1 | 1 | 64211370258 | $11.14 | Shop at ECS Tuning | |||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Water hose inlet 1 | 1 | 64211371375 | $21.68 | Shop at ECS Tuning | |||||
| 02 | Water hose inlet 1 | 1 | 64211363470 | $18.66 | Shop at ECS Tuning | |||||
| 02 | Water hose inlet 2 | 1 | 64211370259 | $13.43 | Shop at ECS Tuning | |||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 02 | Water hose inlet 2 | 1 | 64211371376 | ENDED | Shop at ECS Tuning | |||||
| 03 | Return hose | 1 | 09/1982 | 11531284653 | $22.13 | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 03 | Return hose | 1 | 11531278718 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Water hose inlet/outlet?
- This technical diagram illustrates the Water hose inlet/outlet within the Heater and Air Conditioning group for the 5 Series E28 520i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Water hose inlet 1 (Part #64211370258).
- Which models use the hardware listed in this Water hose inlet/outlet?
- The hardware and components featured in the Water hose inlet/outlet are specific to the 5 Series E28 520i produced during 1987. These technical specifications ensure that parts like the Water hose inlet 1 (64211370258) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Water hose inlet/outlet assembly?
- Each item in the Water hose inlet/outlet corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Water hose inlet 1 by locating its position on the schematic, which then links to the official BMW part number 64211370258 for the Heater and Air Conditioning section.
