Water hose inlet/outlet for BMW 5 Series E12 520 (1976)

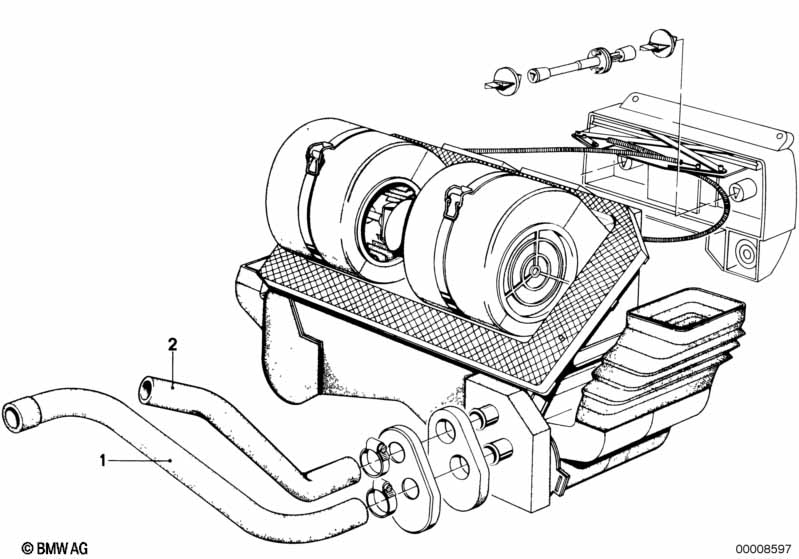

This Water hose inlet/outlet technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | TOO LONG HOSES MUST BE CUT ACCORDING TO THE ORIGINAL PART |
|||||||||
| 01 | Hose, inlet | 1 | 64211364764 | $19.89 | Shop at ECS Tuning | |||||
| 02 | Return hose | 1 | 06/1976 | 64211364767 | $10.94 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Water hose inlet/outlet?
- This technical diagram illustrates the Water hose inlet/outlet within the Heater and Air Conditioning group for the 5 Series E12 520 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Hose, inlet (Part #64211364764).
- Which models use the hardware listed in this Water hose inlet/outlet?
- The hardware and components featured in the Water hose inlet/outlet are specific to the 5 Series E12 520 produced during 1976. These technical specifications ensure that parts like the Hose, inlet (64211364764) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Water hose inlet/outlet assembly?
- Each item in the Water hose inlet/outlet corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Hose, inlet by locating its position on the schematic, which then links to the official BMW part number 64211364764 for the Heater and Air Conditioning section.
