Heating/air conditioner actuation for BMW 5 Series E28 525e (1987)
This Heating/air conditioner actuation technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel | 1 | 07/1981 | 64111375913 | $75.24 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Panel | 1 | 07/1981 | 64111375912 | $67.98 | Shop at ECS Tuning | ||||
| 02 | Illumination plate | 1 | 07/1981 | 64111375099 | $34.80 | Shop at ECS Tuning | ||||
| 03 | Plug | 1 | 64111368498 | $7.03 | Shop at ECS Tuning | |||||
| 05 | Heater control | 1 | 09/1984 | 64111375098 | $144.73 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 05 | Heater control | 1 | 10/1985 | 64111377953 | $132.11 | Shop at ECS Tuning | ||||
| 06 | Bow | 1 | 64111368521 | $1.41 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rotary knob | 1 | 64111367696 | $7.37 | Shop at ECS Tuning | |||||
| 08 | Knob temperature | 1 | 64111367695 | $8.38 | Shop at ECS Tuning | |||||
| 09 | Button | 3 | 09/1984 | 64111375104 | $2.86 | Shop at ECS Tuning | ||||
| 10 | Fillister head screw | M2,5X10 | X | 07119906429 | $1.39 | Shop at ECS Tuning | ||||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 12 | Control unit | KLIMA | 1 | 64111373214 | $124.83 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST4,2X16-ABW | 4 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 14 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Cover | 1 | 64111370453 | $2.61 | Shop at ECS Tuning | |||||
| 17 | Cover | 1 | 64111374633 | $2.66 | ENDED | Shop at ECS Tuning | ||||
| 18 | Bulb | 12V 1,2W | X | 63217167000 | $3.00 | Shop at ECS Tuning | ||||
| 19 | Set prism | 1 | 07/1981 | 64111372279 | $24.46 | ENDED | Shop at ECS Tuning | |||
| 20 | Diode | 3 | 10/1981 | 64111369868 | $5.61 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 525e Heating/air conditioner actuation?

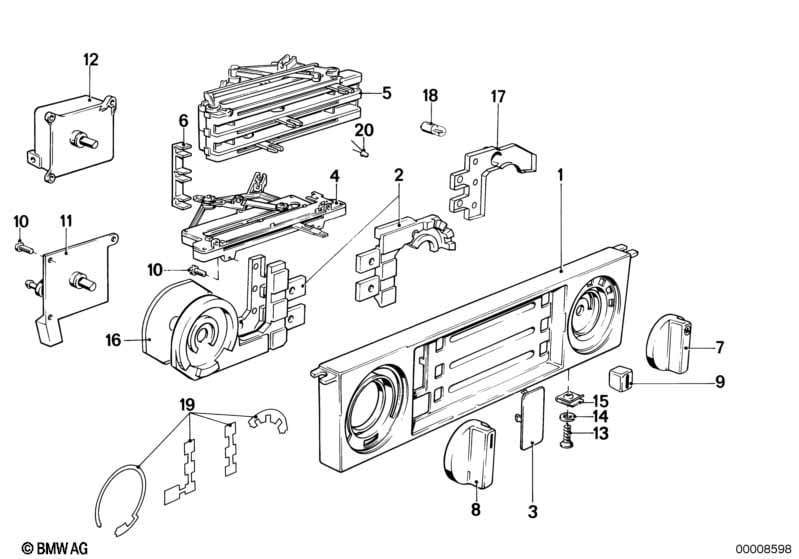

- This technical diagram illustrates the Heating/air conditioner actuation within the Heater and Air Conditioning group for the 5 Series E28 525e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Panel (Part #64111375913).
