Outflow nozzles/covers for BMW 3 Series E30 325ix (1991)

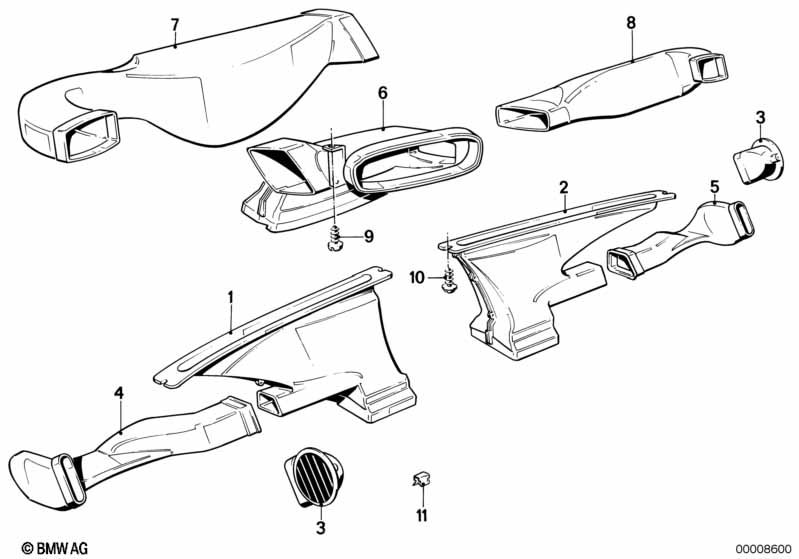

This Outflow nozzles/covers technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Defroster nozzle left | 1 | 51451888231 | $9.14 | Shop at ECS Tuning | |||||
| 02 | Defroster nozzle right | 1 | 51451888232 | $9.14 | Shop at ECS Tuning | |||||
| 03 | Defroster nozzle | 2 | 64221888230 | $5.19 | ENDED | Shop at ECS Tuning | ||||
| 04 | Warm air duct left | 1 | 64221888241 | $5.66 | Shop at ECS Tuning | |||||
| 05 | Warm air duct right | 1 | 64221888242 | $5.66 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cold air duct center | 1 | 64221888243 | $14.61 | Shop at ECS Tuning | |||||
| 07 | Cold air duct left | 1 | 64221888237 | $7.91 | Shop at ECS Tuning | |||||
| 08 | Cold air duct right | 1 | 64221888238 | $7.91 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST2,9X13 | X | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 09 | Fillister head self-tapping screw | ST4,2X13-Z2 | X | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST3,5X13-Z1 | X | 07119907951 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Clamp | 2 | 51451857745 | $0.42 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Outflow nozzles/covers?
- This technical diagram illustrates the Outflow nozzles/covers within the Heater and Air Conditioning group for the 3 Series E30 325ix produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Defroster nozzle left (Part #51451888231).
- Which models use the hardware listed in this Outflow nozzles/covers?
- The hardware and components featured in the Outflow nozzles/covers are specific to the 3 Series E30 325ix produced during 1991. These technical specifications ensure that parts like the Defroster nozzle left (51451888231) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Outflow nozzles/covers assembly?
- Each item in the Outflow nozzles/covers corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Defroster nozzle left by locating its position on the schematic, which then links to the official BMW part number 51451888231 for the Heater and Air Conditioning section.
