Rear heater duct for BMW 3 Series E30 325e (1987)

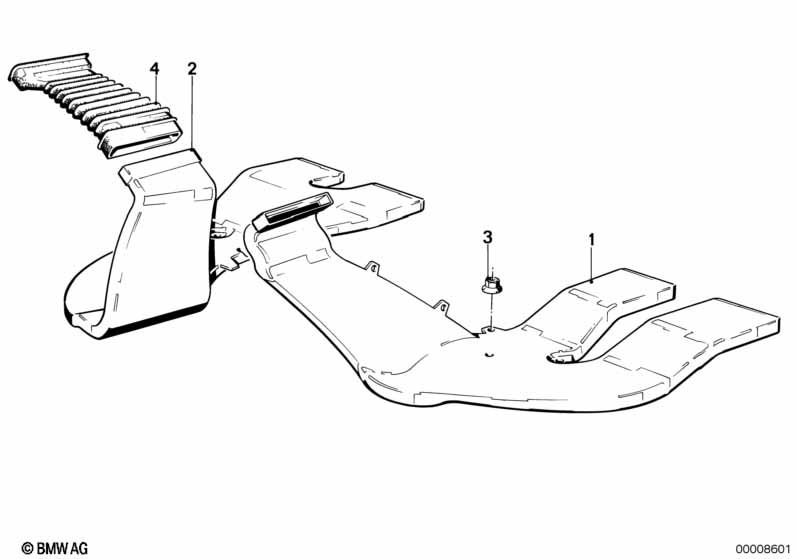

This Rear heater duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater duct rear left | 1 | 09/1985 | 64221913815 | $29.02 | ENDED | Shop at ECS Tuning | |||
| 02 | Heater duct rear right | 1 | 09/1985 | 64221913816 | $43.52 | ENDED | Shop at ECS Tuning | |||
| 03 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Connection piece | 2 | 64211370635 | $3.48 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Rear heater duct?
- This technical diagram illustrates the Rear heater duct within the Heater and Air Conditioning group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Heater duct rear left (Part #64221913815).
- Which models use the hardware listed in this Rear heater duct?
- The hardware and components featured in the Rear heater duct are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the Heater duct rear left (64221913815) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear heater duct assembly?
- Each item in the Rear heater duct corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Heater duct rear left by locating its position on the schematic, which then links to the official BMW part number 64221913815 for the Heater and Air Conditioning section.
