Bowden cable for BMW 5 Series E28 520i (1987)

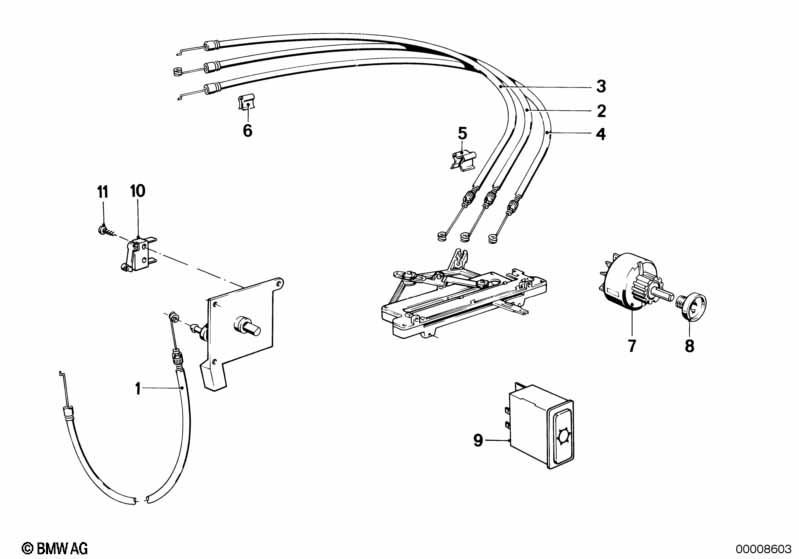

This Bowden cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Bowden cable temperature control | 1 | 09/1986 | 64111367698 | ENDED | Shop at ECS Tuning | ||||
| 01 | Bowden cable temperature control | 1 | 09/1986 | 64111367698 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bowden cable fresh air | 1 | 64111367055 | ENDED | Shop at ECS Tuning | |||||
| 03 | Bowden cable defroster | 1 | 64111367699 | $17.11 | Shop at ECS Tuning | |||||
| 04 | Bowden cable leg-room | 1 | 64111367056 | $22.98 | ENDED | Shop at ECS Tuning | ||||
| 05 | Clamp | X | 64111368019 | $1.12 | Shop at ECS Tuning | |||||
| 06 | Clamp | 2 | 64111367615 | $0.68 | Shop at ECS Tuning | |||||
| 07 | Switch blower | 1 | 61311376909 | $52.34 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 07 | Switch blower | 1 | 61311377251 | $15.43 | ENDED | Shop at ECS Tuning | ||||
| 09 | Switch air conditioning | 1 | 61311370294 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
