Heater closing panel for BMW 3 Series E30 325e (1988)

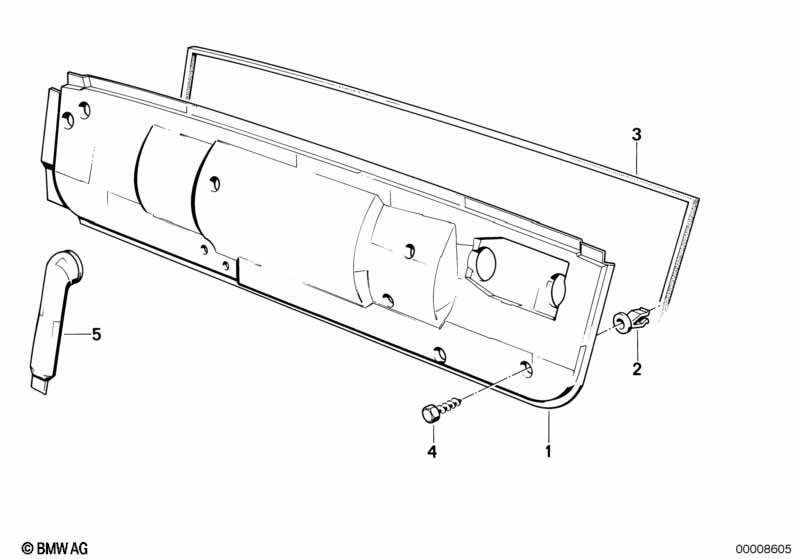

This Heater closing panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater closing panel | 1 | 51711913799 | $26.84 | ENDED | Shop at ECS Tuning | ||||
| 02 | Expanding nut | ST 3.9 | 4 | 51711874203 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Gasket | L=1300 MM | 1 | 51711825972 | $2.88 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,2X13-C | 4 | 07119916804 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST3,9X16-C-Z2 | 4 | 07119916808 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Hose | 1 | 51731911369 | $26.19 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Heater closing panel?
- This technical diagram illustrates the Heater closing panel within the Heater and Air Conditioning group for the 3 Series E30 325e produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Heater closing panel (Part #51711913799).
- Which models use the hardware listed in this Heater closing panel?
- The hardware and components featured in the Heater closing panel are specific to the 3 Series E30 325e produced during 1988. These technical specifications ensure that parts like the Heater closing panel (51711913799) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater closing panel assembly?
- Each item in the Heater closing panel corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Heater closing panel by locating its position on the schematic, which then links to the official BMW part number 51711913799 for the Heater and Air Conditioning section.
