Heater control for BMW 3 Series E30 324d (1990)

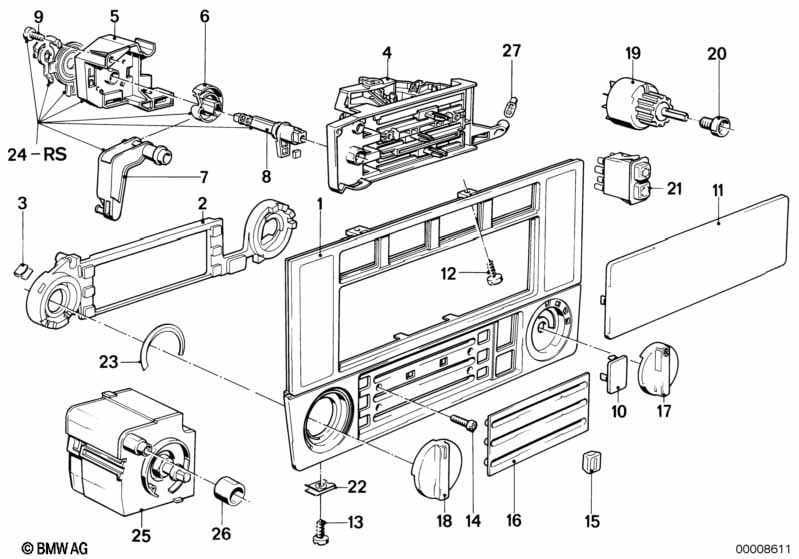

This Heater control technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel | 1 | 09/1984 | 64111385877 | $326.88 | Shop at ECS Tuning | ||||
| For vehicles with Clock |
=Yes |
|||||||||
| 01 | Panel | 1 | 09/1984 | 64111385878 | $326.88 | ENDED | Shop at ECS Tuning | |||
| 02 | Illumination plate | 1 | 64111385872 | $124.26 | Shop at ECS Tuning | |||||
| 03 | Clamp | 4 | 64111368948 | $0.34 | Shop at ECS Tuning | |||||
| 04 | Heater control | 1 | 03/1983 | 64111385972 | $77.17 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 04 | Heater control | 1 | 03/1983 | 64111385972 | $77.17 | ENDED | Shop at ECS Tuning | |||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 04 | Heater control | 1 | 09/1987 | 64111385970 | $160.78 | ENDED | Shop at ECS Tuning | |||
| For vehicles with automatic heater control and Air conditioning |
=Yes =Yes |
|||||||||
| 04 | Heater control | 1 | 09/1987 | 64111385970 | $160.78 | ENDED | Shop at ECS Tuning | |||
| 05 | Supporting bracket | 1 | 64111370973 | ENDED | Shop at ECS Tuning | |||||
| 09 | Fillister head screw | M3X6 | 1 | 07119907600 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | M3X8-4.8-H-ZN | 3 | 07119907602 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | 3X10 | 2 | 64116940162 | $0.70 | Shop at ECS Tuning | ||||
| 10 | Plug | 3 | 64111368498 | $7.03 | Shop at ECS Tuning | |||||
| 11 | Radio frame | 1 | 64111368515 | $25.40 | Shop at ECS Tuning | |||||
| 12 | Fillister head self-tapping screw | ST2,9X13 | 2 | 07119906706 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 12 | Fillister head self-tapping screw | ST2,9X6,5 | 2 | 07119907701 | $1.91 | Shop at ECS Tuning | ||||
| 13 | Fillister head self-tapping screw | ST3,9X16 | 2 | 07119906734 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Fillister head screw | M4X8 | 4 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 14 | Fillister head screw | 4X10 | 4 | 64111386955 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Button | 3 | 64111375674 | $6.90 | Shop at ECS Tuning | |||||
| 16 | Cover | 1 | 64111370629 | $9.11 | Shop at ECS Tuning | |||||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 16 | Cover | 1 | 09/1987 | 64111385875 | $9.11 | Shop at ECS Tuning | ||||
| 17 | Rotary knob | 1 | 09/1984 | 64111375508 | $7.80 | Shop at ECS Tuning | ||||
| 18 | Knob temperature | 1 | 64111375673 | $38.09 | Shop at ECS Tuning | |||||
| 19 | Switch blower | 1 | 09/1984 | 61311381201 | $28.18 | ENDED | Shop at ECS Tuning | |||
| 19 | Switch blower | 1 | 09/1984 | 61311376908 | $11.62 | ENDED | Shop at ECS Tuning | |||
| 21 | Switch air conditioning | 1 | 09/1986 | 61311380557 | $90.00 | Shop at ECS Tuning | ||||
| 22 | Body nut | M6 | 2 | 07147133884 | $0.36 | Shop at ECS Tuning | ||||
| 23 | Foil | 1 | 64111375742 | $2.55 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 23 | Foil | 1 | 09/1987 | 64111375743 | $2.66 | ENDED | Shop at ECS Tuning | |||
| 24 | Repair set temperature switch | 1 | 03/1983 | 64111375746 | $27.49 | Shop at ECS Tuning | ||||
| For vehicles with automatic heater control |
=Yes |
|||||||||
| 25 | Control unit | 1 | 09/1987 | 64111386822 | $689.21 | Shop at ECS Tuning | ||||
| For vehicles with automatic heater control and Air conditioning |
=Yes =Yes |
|||||||||
| 25 | Control unit | 1 | 09/1987 | 64111386821 | $754.30 | Shop at ECS Tuning | ||||
