Air channel for BMW 7 Series E32 740iL (1994)

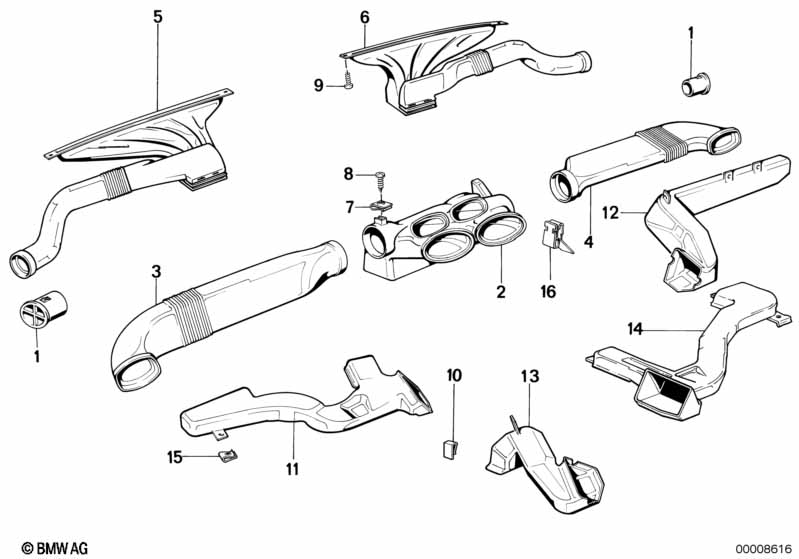

This Air channel technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Defroster nozzle | 2 | 51451908968 | $4.47 | Shop at ECS Tuning | |||||
| 02 | Cold air duct center | 1 | 06/1988 | 64221908954 | $25.28 | ENDED | Shop at ECS Tuning | |||
| 03 | Cold air duct left | 1 | 64221908955 | $9.44 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cold air duct right | 1 | 64221908956 | $12.28 | ENDED | Shop at ECS Tuning | ||||
| 05 | Defroster nozzle left | 1 | 64221964557 | $36.45 | ENDED | Shop at ECS Tuning | ||||
| 06 | Defroster nozzle right | 1 | 64221964558 | $36.45 | ENDED | Shop at ECS Tuning | ||||
| 07 | C-clip nut | 7 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 08 | Fillister head self-tapping screw | ST4,2X16-Z2 | 3 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,2X13-Z2 | 4 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Clamp | 2 | 16111117201 | $0.30 | Shop at ECS Tuning | |||||
| 11 | Heater duct | 1 | 64221908701 | $36.12 | Shop at ECS Tuning | |||||
| 12 | Heater duct right | 1 | 64221908702 | $18.77 | Shop at ECS Tuning | |||||
| 15 | C-clip nut | 1 | 07146988451 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
