Fresh air grille for BMW 7 Series E32 730i (1988)

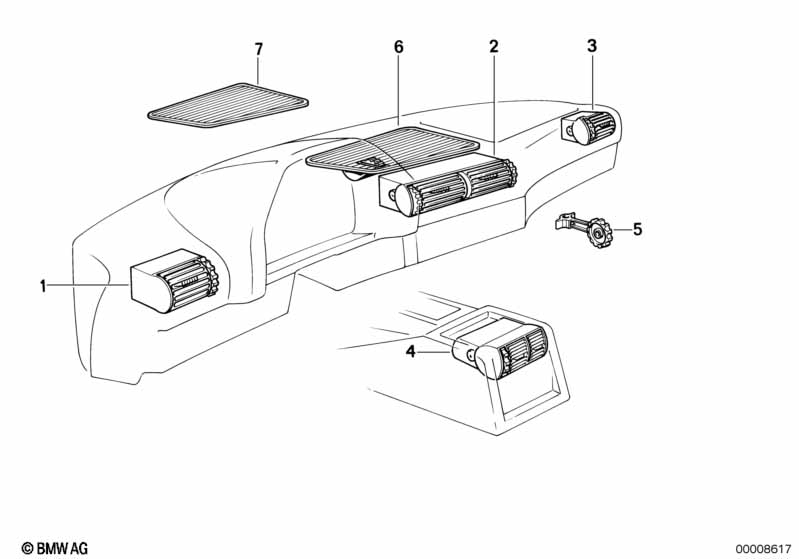

This Fresh air grille technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fresh air grille, left | 1 | 64221375563 | ENDED | Shop at ECS Tuning | |||||
| 02 | Fresh air grille center | 1 | 64221390926 | $259.76 | Shop at ECS Tuning | |||||
| 03 | Fresh air grille, right | 1 | 64221375560 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fresh air grille rear room electr. | 1 | 64221375561 | $284.45 | Shop at ECS Tuning | |||||
| 05 | Potentiometer | 1 | 64221379875 | $73.63 | Shop at ECS Tuning | |||||
| ALSO FOR THEFT ALARM | ||||||||||
| 06 | Fresh air grille | SCHWARZ | 1 | 64221379169 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fresh air grille | INDIGO | 1 | 64221379170 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fresh air grille | HAVANNA | 1 | 64221379171 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fresh air grille | SILBERGR.DUNKEL | 1 | 64228139967 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fresh air grille | ULTRAMARIN | 1 | 64228139968 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fresh air grille | PERGAM.DUNKEL | 1 | 64228139969 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fresh air grille | BRASIL | 1 | 64228139970 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cover | SCHWARZ | 1 | 64221379181 | $27.90 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover | INDIGO | 1 | 64221379182 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cover | HAVANNA | 1 | 64221379183 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Fresh air grille?
- This technical diagram illustrates the Fresh air grille within the Heater and Air Conditioning group for the 7 Series E32 730i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Fresh air grille, left (Part #64221375563).
- Which models use the hardware listed in this Fresh air grille?
- The hardware and components featured in the Fresh air grille are specific to the 7 Series E32 730i produced during 1988. These technical specifications ensure that parts like the Fresh air grille, left (64221375563) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fresh air grille assembly?
- Each item in the Fresh air grille corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Fresh air grille, left by locating its position on the schematic, which then links to the official BMW part number 64221375563 for the Heater and Air Conditioning section.
