Water valve/Water hose for BMW 5 Series E34 525td (1995)

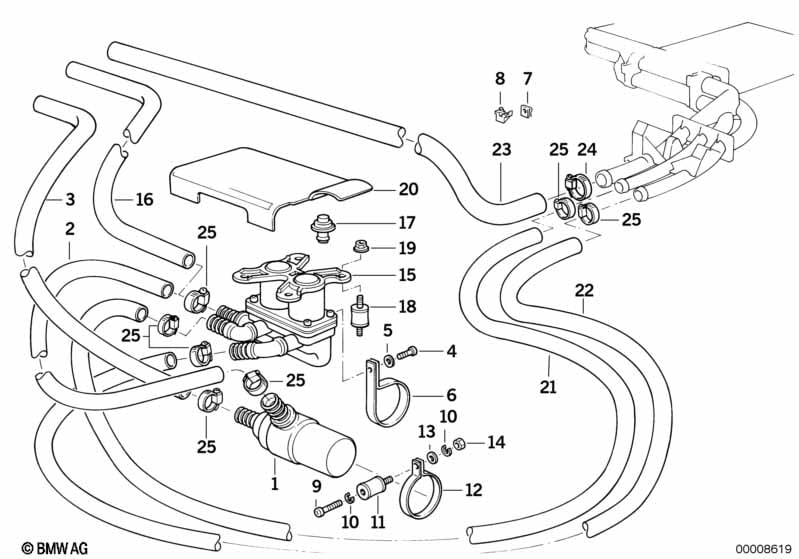

This Water valve/Water hose technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | TOO LONG HOSES MUST BE CUT ACCORDING TO THE ORIGINAL PART |
|||||||||
| 01 | Additional water pump | 1 | 03/1990 | 64118390090 | $163.38 | ENDED | Shop at ECS Tuning | |||
| 01 | Additional water pump | 1 | 03/1990 | 64118390063 | $131.88 | Shop at ECS Tuning | ||||
| 02 | Hose f additional water pump/water valve | 1 | 03/1988 | 64211384763 | $24.42 | Shop at ECS Tuning | ||||
| 03 | Hose f engine inlet and addit.water pump | 1 | 64218351278 | $24.34 | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST4,2X32 | 1 | 07119906757 | $0.13 | Shop at ECS Tuning | ||||
| 05 | Washer | 9X4,3X0,8-200HV | 1 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 06 | Muffler clamp | 1 | 64111390166 | $1.28 | ENDED | Shop at ECS Tuning | ||||
| 07 | Nut | ST4,2-1 | 1 | 07129926107 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | M4X25 | 1 | 07119907685 | $1.18 | Shop at ECS Tuning | ||||
| 10 | Wave washer | B4 | 2 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Vibration damper | 1 | 64111388990 | $6.93 | Shop at ECS Tuning | |||||
| 12 | Muffler clamp | 1 | 64111388994 | $1.80 | Shop at ECS Tuning | |||||
| 13 | Washer | 4-200 HV-ZNS3 | 1 | 07119904207 | Shop at ECS Tuning | |||||
| 14 | Hex nut | M4-A2-70 | 1 | 07119922854 | Shop at ECS Tuning | |||||
| 15 | Water valve | 1 | 03/1988 | 64118391417 | $274.00 | Shop at ECS Tuning | ||||
| 16 | Hose f engine inlet and water valve | 1 | 64211384967 | $24.96 | Shop at ECS Tuning | |||||
| 18 | Vibration damper | 3 | 64111390940 | $5.60 | Shop at ECS Tuning | |||||
| 19 | Cap nut | 3 | 64111388004 | $8.28 | Shop at ECS Tuning | |||||
| 20 | Cover | 1 | 64111388000 | $14.02 | Shop at ECS Tuning | |||||
| 21 | Hose f water valve and left radiator | 1 | 03/1988 | 64211384711 | $16.16 | Shop at ECS Tuning | ||||
| 22 | Hose f water valve and right radiator | 1 | 03/1988 | 64211384712 | $16.16 | Shop at ECS Tuning | ||||
| 23 | Hose f radiator and engine return | 1 | 11532241852 | Shop at ECS Tuning | ||||||
| 24 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 25 | Hose clamp | L23-29 | X | 12/1995 | 07129952111 | $0.93 | ENDED | Shop at ECS Tuning | ||
| 25 | Hose clamp | L16-30 | X | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 25 | Hose clamp | L28-33 | X | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 25 | Hose clamp | L32-38 | X | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
