Electric parts for AC unit for BMW 5 Series E34 525tds (1996)

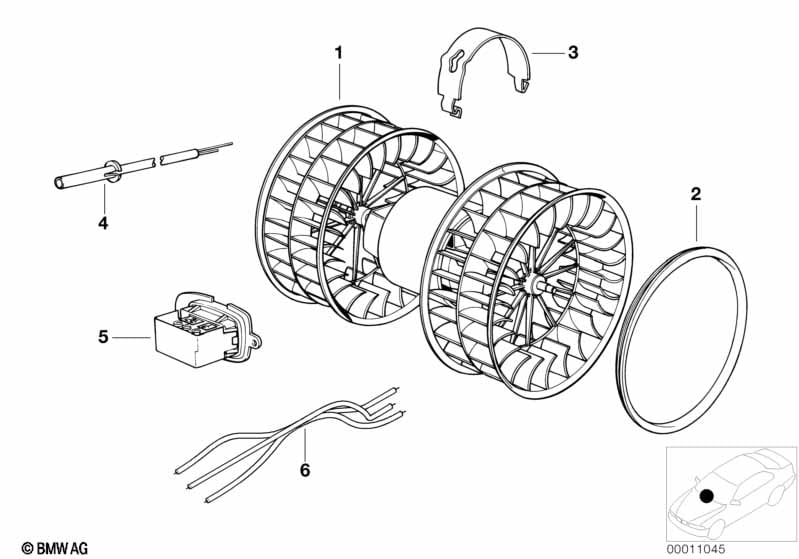

This Electric parts for AC unit technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic air conditioning |
=Yes |
|||||||||
| 01 | Blower unit | 1 | 64118390935 | $325.17 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Blower unit | 1 | 64118390935 | $325.17 | Shop at ECS Tuning | |||||
| 02 | Inlet frame outer | 2 | 64111374376 | $26.17 | Shop at ECS Tuning | |||||
| 03 | Shackle | 1 | 64111370935 | $5.98 | Shop at ECS Tuning | |||||
| 04 | Repair kit temperature sensor | 1 | 64111378849 | $46.67 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 05 | Blower resistor | 1 | 64118391699 | $47.03 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
=Yes |
|||||||||
| 06 | Set of cables for auto. air conditioning | 1 | 64119069748 | $1473.12 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
