Electric parts for AC unit for BMW 7 Series E32 730i (1988)

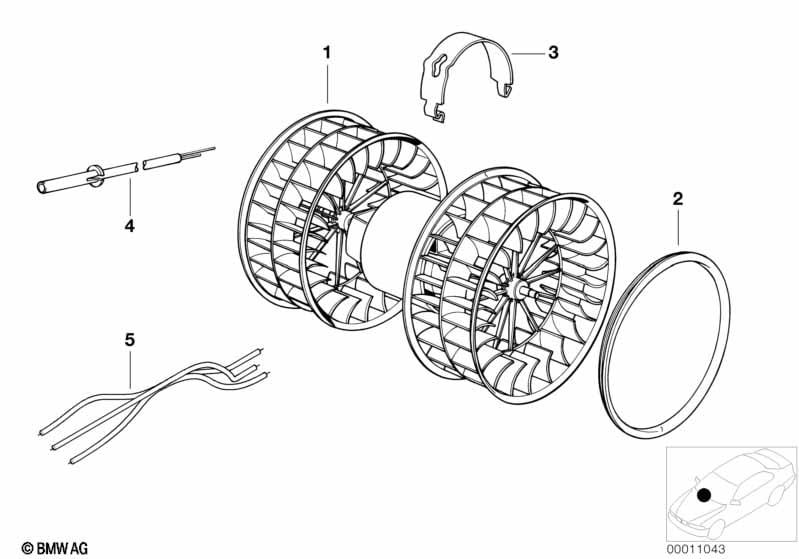

This Electric parts for AC unit technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blower unit | 1 | 64118390935 | $325.17 | Shop at ECS Tuning | |||||
| 02 | Inlet frame outer | 2 | 64111374376 | $26.17 | Shop at ECS Tuning | |||||
| 03 | Shackle | 1 | 64111370935 | $5.98 | Shop at ECS Tuning | |||||
| 04 | Repair kit temperature sensor | 1 | 64111378849 | $46.67 | Shop at ECS Tuning | |||||
| 05 | Set of cables for auto. air conditioning | 1 | 64119069748 | $1473.12 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Electric parts for AC unit?
- This technical diagram illustrates the Electric parts for AC unit within the Heater and Air Conditioning group for the 7 Series E32 730i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Blower unit (Part #64118390935).
- Which models use the hardware listed in this Electric parts for AC unit?
- The hardware and components featured in the Electric parts for AC unit are specific to the 7 Series E32 730i produced during 1988. These technical specifications ensure that parts like the Blower unit (64118390935) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Electric parts for AC unit assembly?
- Each item in the Electric parts for AC unit corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Blower unit by locating its position on the schematic, which then links to the official BMW part number 64118390935 for the Heater and Air Conditioning section.
