Actuator/connection rod behr for BMW 7 Series E32 730i (1994)

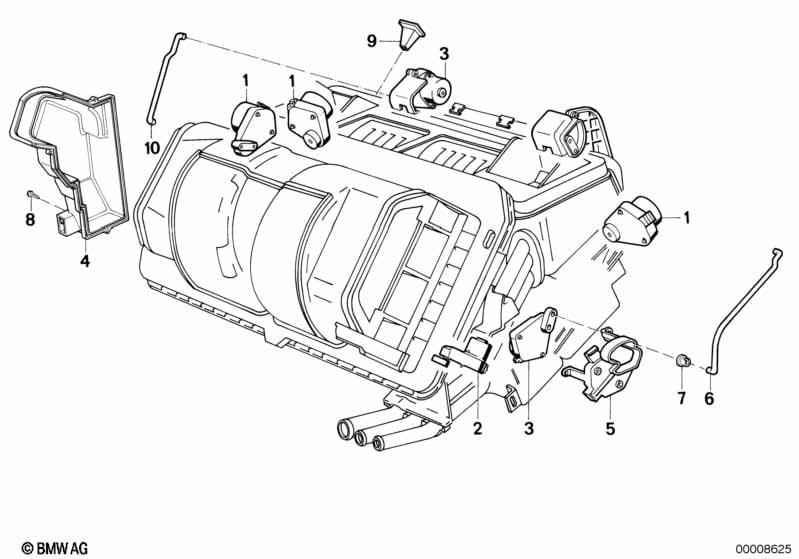

This Actuator/connection rod behr technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO LEG ROOM FLAP | ||||||||||
| 01 | Actuator | 2 | 64118364761 | $196.07 | ENDED | Shop at ECS Tuning | ||||
| Only applies to ventilation flap | ||||||||||
| 01 | Actuator | 1 | 64118364761 | $196.07 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO FRESH AIR FLAP | ||||||||||
| 02 | Actuator | 1 | 64118364760 | $196.07 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DEFROSTER FLAP ONLY APPLIES TO TEMP.REGULATOR FLAP |
||||||||||
| 03 | Actuator | 2 | 64118364918 | $155.87 | Shop at ECS Tuning | |||||
| 04 | Cover | 1 | 12/1987 | 64111382916 | $21.32 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Microfiltre |
=Yes |
|||||||||
| 04 | Evaporator cover | 1 | 64111390834 | $25.25 | Shop at ECS Tuning | |||||
| 05 | Protection cap | 1 | 64111378705 | $5.60 | ENDED | Shop at ECS Tuning | ||||
| 06 | Connection rod | 1 | 64111388535 | $8.53 | ENDED | Shop at ECS Tuning | ||||
| 07 | Clamp | 4 | 64111372638 | $1.72 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | X | 07147195855 | Shop at ECS Tuning | ||||||
| 09 | Covering right | 1 | 64111379574 | $39.84 | ENDED | Shop at ECS Tuning | ||||
| 10 | Connection rod | 1 | 64111374381 | $5.58 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
