Climate capacitor/additional blower for BMW 5 Series E34 520i (1996)

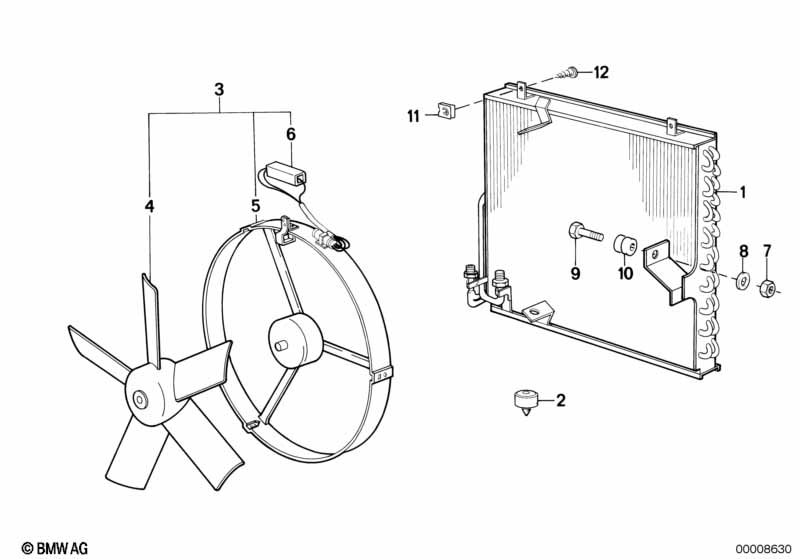

This Climate capacitor/additional blower technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Condenser | R12/R134A | 1 | 64536965952 | $540.42 | Shop at ECS Tuning | ||||
| 02 | Rubber Mounting | 2 | 64531378239 | $1.82 | Shop at ECS Tuning | |||||
| 03 | Additional fan | 1 | 64541392913 | $348.67 | Shop at ECS Tuning | |||||
| 06 | Resistor | BOSCH | 1 | 17401373177 | $32.10 | SI 120787777 | Shop at ECS Tuning | |||
| 06 | Repair kit resistor | MAGNA | 1 | 64121388069 | $58.98 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 08 | Washer | 3 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 09 | Fit bolt | M5 | 3 | 17401354522 | $1.17 | Shop at ECS Tuning | ||||
| 10 | Rubber grommet | 3 | 17401362128 | $3.37 | Shop at ECS Tuning | |||||
| 11 | Body nut | B6,3-6 | 3 | 16111152613 | $0.35 | Shop at ECS Tuning | ||||
| 12 | Hex head screw | ST6,3X13-F-Z2 | 3 | 07119916964 | $0.47 | ENDED | Shop at ECS Tuning |
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 520i Climate capacitor/additional blower?
- This technical diagram illustrates the Climate capacitor/additional blower within the Heater and Air Conditioning group for the 5 Series E34 520i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Condenser (Part #64536965952).
- Which models use the hardware listed in this Climate capacitor/additional blower?
- The hardware and components featured in the Climate capacitor/additional blower are specific to the 5 Series E34 520i produced during 1996. These technical specifications ensure that parts like the Condenser (64536965952) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Climate capacitor/additional blower assembly?
- Each item in the Climate capacitor/additional blower corresponds to the numbered list below the illustration. For the 5 Series E34 520i, you can identify the Condenser by locating its position on the schematic, which then links to the official BMW part number 64536965952 for the Heater and Air Conditioning section.
