Additional thermostat/water hose for BMW 3 Series E30 325ix (1991)

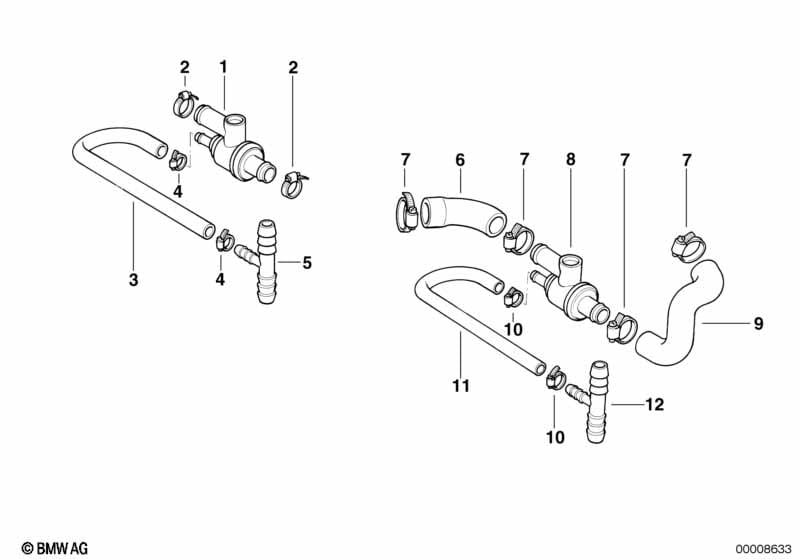

This Additional thermostat/water hose technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Hose, inlet | 1 | 64218367790 | $3.95 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L16-30 | 4 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Thermostat | 1 | 64118391926 | $39.16 | Shop at ECS Tuning | |||||
| 09 | Hose, inlet | 1 | 64218367791 | $3.95 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Hose | 1 | 64218367834 | $6.54 | Shop at ECS Tuning | |||||
| 12 | T-Connector | 1 | 64118367832 | $2.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Additional thermostat/water hose?
- This technical diagram illustrates the Additional thermostat/water hose within the Heater and Air Conditioning group for the 3 Series E30 325ix produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Hose, inlet (Part #64218367790).
- Which models use the hardware listed in this Additional thermostat/water hose?
- The hardware and components featured in the Additional thermostat/water hose are specific to the 3 Series E30 325ix produced during 1991. These technical specifications ensure that parts like the Hose, inlet (64218367790) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Additional thermostat/water hose assembly?
- Each item in the Additional thermostat/water hose corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Hose, inlet by locating its position on the schematic, which then links to the official BMW part number 64218367790 for the Heater and Air Conditioning section.
