Heater Siemens for BMW 5 Series E34 518i (1994)

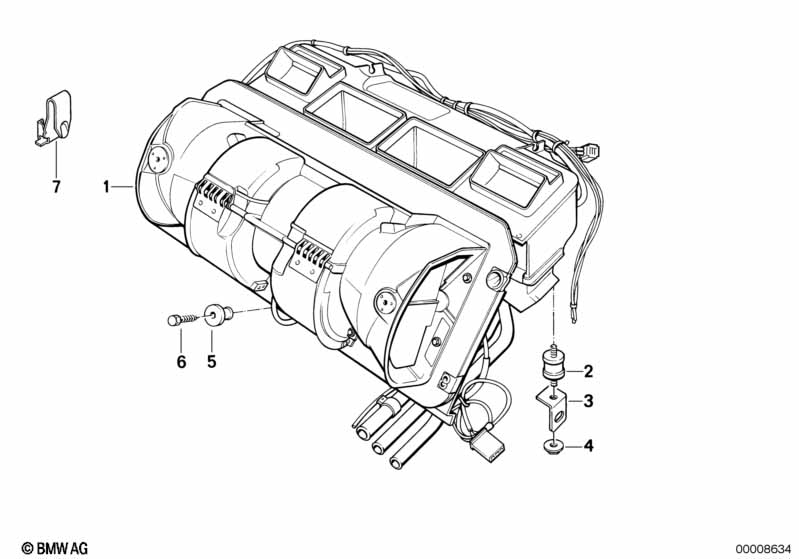

This Heater Siemens technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DELETED HEATER/AIR CONDITION.UNITS ARE REPLACED BY SINGLE PARTS. |
||||||||||
| 01 | Heater | 1 | 04/1989 | 64111391865 | ENDED | Shop at ECS Tuning | ||||
| 02 | Vibration damper | 2 | 64218042132 | $8.10 | Shop at ECS Tuning | |||||
| 03 | Holder | 1 | 64118390718 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 05 | Gasket | 3 | 64111374240 | $2.23 | Shop at ECS Tuning | |||||
| 06 | Hex head screw | ST6,3X45-C-Z2 | 2 | 07119916848 | $0.54 | Shop at ECS Tuning | ||||
| 07 | Clamp | 1 | 64111384433 | $0.53 | SI 641091408 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 518i Heater Siemens?
- This technical diagram illustrates the Heater Siemens within the Heater and Air Conditioning group for the 5 Series E34 518i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Heater (Part #64111391865).
- Which models use the hardware listed in this Heater Siemens?
- The hardware and components featured in the Heater Siemens are specific to the 5 Series E34 518i produced during 1994. These technical specifications ensure that parts like the Heater (64111391865) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater Siemens assembly?
- Each item in the Heater Siemens corresponds to the numbered list below the illustration. For the 5 Series E34 518i, you can identify the Heater by locating its position on the schematic, which then links to the official BMW part number 64111391865 for the Heater and Air Conditioning section.
