Housing parts, heater Valeo for BMW 5 Series E34 530i (1990)

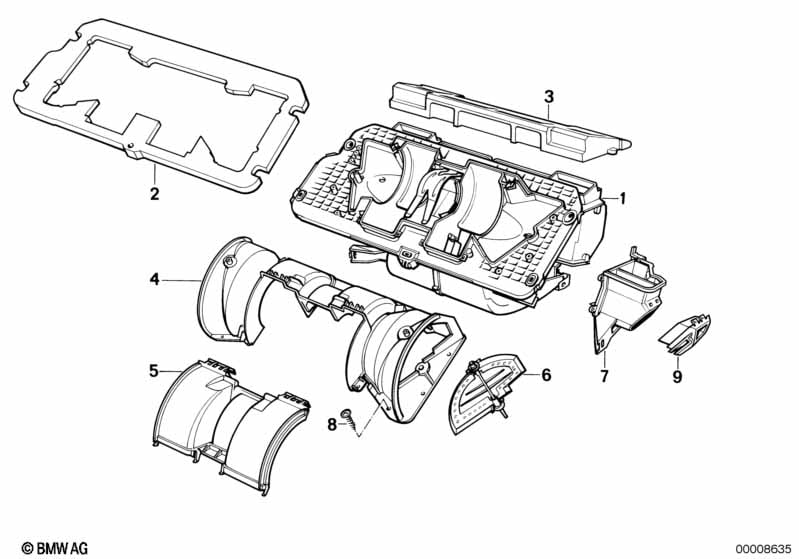

This Housing parts, heater Valeo technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing | 1 | 09/1990 | 64111384722 | $400.64 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket | 1 | 09/1991 | 64111384314 | $56.36 | Shop at ECS Tuning | ||||
| 03 | Gasket | 1 | 09/1991 | 64111389413 | $49.10 | Shop at ECS Tuning | ||||
| 04 | Housing | 1 | 09/1991 | 64111389466 | $44.92 | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 09/1991 | 64111384320 | $54.41 | Shop at ECS Tuning | ||||
| 06 | Flap left | 1 | 09/1991 | 64111384321 | $20.76 | Shop at ECS Tuning | ||||
| 06 | Flap right | 1 | 09/1991 | 64111384322 | $20.76 | ENDED | Shop at ECS Tuning | |||
| 07 | Housing | 1 | 09/1991 | 64111384218 | $44.92 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | X | 09/1991 | 07147195855 | Shop at ECS Tuning | |||||
| 09 | Covering left | 1 | 09/1991 | 64111389385 | $2.40 | ENDED | Shop at ECS Tuning | |||
| 09 | Covering right | 1 | 09/1991 | 64111389386 | $2.40 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 530i Housing parts, heater Valeo?
- This technical diagram illustrates the Housing parts, heater Valeo within the Heater and Air Conditioning group for the 5 Series E34 530i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Housing (Part #64111384722).
- Which models use the hardware listed in this Housing parts, heater Valeo?
- The hardware and components featured in the Housing parts, heater Valeo are specific to the 5 Series E34 530i produced during 1990. These technical specifications ensure that parts like the Housing (64111384722) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Housing parts, heater Valeo assembly?
- Each item in the Housing parts, heater Valeo corresponds to the numbered list below the illustration. For the 5 Series E34 530i, you can identify the Housing by locating its position on the schematic, which then links to the official BMW part number 64111384722 for the Heater and Air Conditioning section.
