Air outlet for BMW 5 Series E34 M5 (1995)

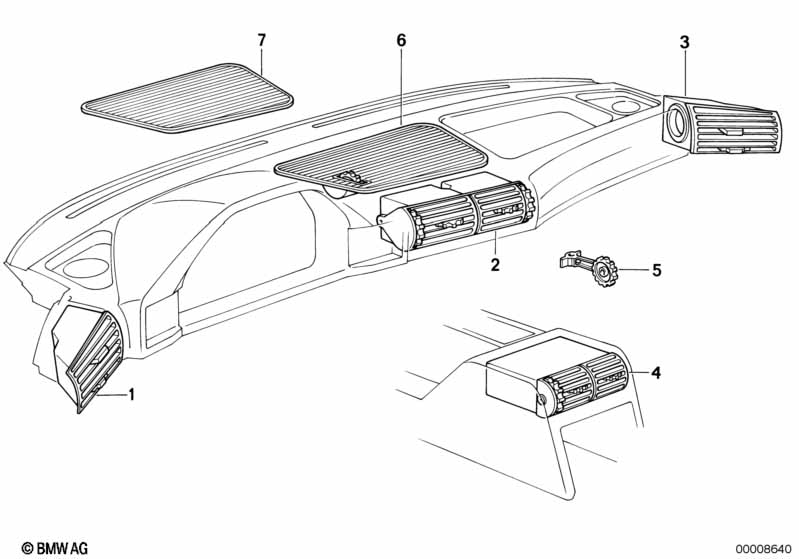

This Air outlet technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fresh air grille, left | 1 | 64221384087 | $54.43 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fresh air grille center | 1 | 09/1991 | 64228390463 | $60.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Fresh air grille center | 1 | 09/1991 | 64228390463 | $60.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Automatic air conditioning |
=Yes |
|||||||||
| 02 | Fresh air grille center | 1 | 64222236447 | $149.57 | Shop at ECS Tuning | |||||
| 03 | Fresh air grille, right | 1 | 64221384088 | $54.43 | Shop at ECS Tuning | |||||
| 04 | Fresh air grille rear room electr. | 1 | 64221375561 | $284.45 | Shop at ECS Tuning | |||||
| ALSO FOR THEFT ALARM | ||||||||||
| 06 | Fresh air grille | SCHWARZ | 1 | 64221384074 | $84.00 | Shop at ECS Tuning | ||||
| 06 | Fresh air grille | INDIGO | 1 | 64221384075 | $54.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Fresh air grille | HAVANNA | 1 | 64221384076 | $54.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Fresh air grille | SILBERGR.DUNKEL | 1 | 64228138558 | $54.43 | Shop at ECS Tuning | ||||
| 06 | Fresh air grille | ULTRAMARIN | 1 | 64228138559 | $54.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Fresh air grille | PERGAM.DUNKEL | 1 | 64228138760 | $54.43 | Shop at ECS Tuning | ||||
| 06 | Fresh air grille | BRASIL | 1 | 64228138761 | $49.38 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Leather trim ALSO FOR THEFT ALARM |
=Yes |
|||||||||
| 06 | Fresh air grille | SCHWARZ | 1 | 64222236056 | $54.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Fresh air grille | SILBER | 1 | 64222236057 | $47.15 | ENDED | Shop at ECS Tuning | |||
| 06 | Fresh air grille | NATUR | 1 | 64222236058 | $47.99 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
