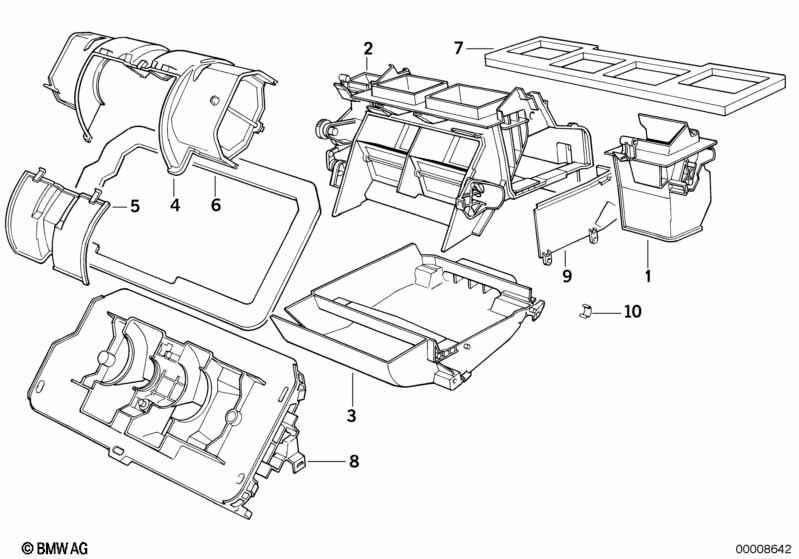

Housing parts, heater Siemens for BMW 7 Series E32 730i (1994)
This Housing parts, heater Siemens technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing | 1 | 64111388159 | $33.48 | ENDED | Shop at ECS Tuning | ||||
| 02 | Housing center | 1 | 64111388189 | $164.05 | ENDED | Shop at ECS Tuning | ||||
| 03 | Housing lower part | 1 | 64111388198 | ENDED | Shop at ECS Tuning | |||||
| 04 | Blower upper part | 1 | 64111388180 | ENDED | Shop at ECS Tuning | |||||
| 05 | Cover | 1 | 64111388181 | Shop at ECS Tuning | ||||||
| 06 | Sealing frame | 1 | 64111388203 | Shop at ECS Tuning | ||||||
| 07 | Gasket | 1 | 64111388204 | Shop at ECS Tuning | ||||||
| 08 | Housing upper part | 1 | 64111388179 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO VL PLASTIC | ||||||||||
| 09 | Cover | 1 | 64118351597 | $8.37 | Shop at ECS Tuning | |||||
| 10 | Clamp | 1 | 64111370938 | $0.38 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
