Water valve/Water hose for BMW 7 Series E32 730i (1990)

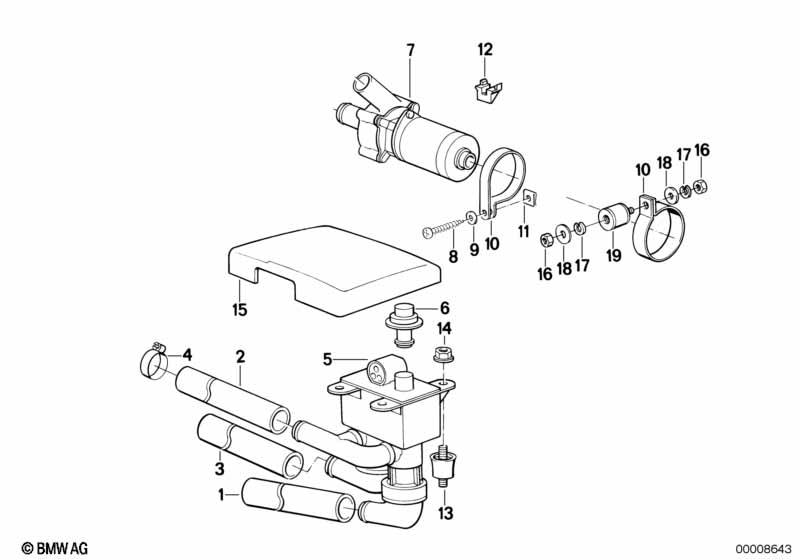

This Water valve/Water hose technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | TOO LONG HOSES MUST BE CUT ACCORDING TO THE ORIGINAL PART |
|||||||||
| 01 | Hose f additional water pump/water valve | 1 | 03/1988 | 64211384763 | $24.42 | Shop at ECS Tuning | ||||
| 02 | Hose f water valve and left radiator | 1 | 12/1987 | 64211390381 | $16.16 | Shop at ECS Tuning | ||||
| 03 | Hose f water valve and right radiator | 1 | 12/1987 | 64211390382 | $16.16 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L23-29 | 4 | 12/1995 | 07129952111 | $0.93 | ENDED | Shop at ECS Tuning | ||
| 04 | Hose clamp | L16-30 | 4 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 05 | Water valve | 1 | 03/1988 | 64118391417 | $274.00 | Shop at ECS Tuning | ||||
| For vehicles with Auxiliary heating |
=Yes |
|||||||||
| 05 | Water valve | 1 | 64111388619 | $444.23 | Shop at ECS Tuning | |||||
| 06 | Valve | 1 | 64118390132 | $152.65 | ENDED | Shop at ECS Tuning | ||||
| 07 | Additional water pump | 1 | 06/1988 | 64118390090 | $163.38 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| 07 | Additional water pump | 1 | 06/1988 | 64118390063 | $131.88 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Vibration damper | 1 | 06/1988 | 64111388990 | $6.93 | Shop at ECS Tuning | ||||
| -- | Muffler clamp | 1 | 06/1988 | 64111390166 | $1.28 | ENDED | Shop at ECS Tuning | |||
| -- | Washer | 4-200 HV-ZNS3 | 1 | 06/1988 | 07119904207 | Shop at ECS Tuning | ||||
| -- | Fillister head screw | M4X25 | 1 | 06/1988 | 07119907685 | $1.18 | Shop at ECS Tuning | |||
| -- | Hex nut | M4-A2-70 | 1 | 06/1988 | 07119922854 | Shop at ECS Tuning | ||||
| -- | Wave washer | B4 | 1 | 06/1988 | 07119932033 | $0.09 | Shop at ECS Tuning | |||
| 08 | Fillister head self-tapping screw | ST4,2X32 | 1 | 07119906757 | $0.13 | Shop at ECS Tuning | ||||
| 09 | Washer | 9X4,3X0,8-200HV | 1 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 10 | Muffler clamp | 1 | 06/1988 | 64111390166 | $1.28 | ENDED | Shop at ECS Tuning | |||
| 11 | Nut | ST4,2-1 | 1 | 03/1988 | 07129926107 | $0.36 | Shop at ECS Tuning | |||
| 12 | Wedge | 1 | 64111378375 | $0.62 | Shop at ECS Tuning | |||||
| 13 | Vibration damper | 3 | 64111390940 | $5.60 | Shop at ECS Tuning | |||||
| 14 | Cap nut | 3 | 11/1987 | 64111388004 | $8.28 | Shop at ECS Tuning | ||||
| 15 | Cover | 1 | 11/1987 | 64111388000 | $14.02 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M4-A2-70 | 2 | 07119922854 | Shop at ECS Tuning | |||||
| 17 | Wave washer | B4 | 2 | 07119932033 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Washer | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 19 | Vibration damper | 1 | 64111388990 | $6.93 | Shop at ECS Tuning | |||||
