Heater control Siemens for BMW 3 Series E36 325tds (1999)

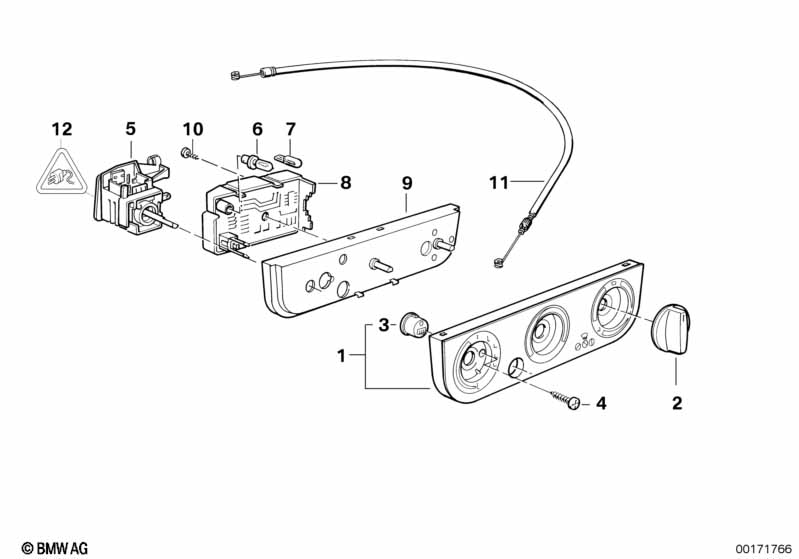

This Heater control Siemens technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IDENTIFICATION SEE SI 6407 92(575) | |||||||||
| 01 | Heater control panel | SIEMENS | 1 | 05/1991 | 64118368041 | $105.03 | Shop at ECS Tuning | |||
| 02 | Knob temperature | 3 | 64111393873 | $12.52 | Shop at ECS Tuning | |||||
| 03 | Push button heated rear window | 1 | 11/1993 | 64118368042 | $5.36 | Shop at ECS Tuning | ||||
| 04 | Screw | 2,1X20 | 2 | 61131389045 | $0.28 | Shop at ECS Tuning | ||||
| 05 | Switch blower | 1 | 64111393878 | $117.73 | Shop at ECS Tuning | |||||
| 08 | Heater control | 1 | 09/1994 | 64118368295 | Shop at ECS Tuning | |||||
| COMPRISES AMONG OTHERS PRINTED CIRCUIT BOARD SWITCH HEATED REAR WINDOW |
||||||||||
| 09 | Base plate | 1 | 64118368297 | $119.67 | Shop at ECS Tuning | |||||
| 10 | Screw | 30X12 | 6 | 64111391719 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Bowden cable air refreshing | GELB/SCHWARZ | 1 | 64111387944 | $6.57 | Shop at ECS Tuning | ||||
| 12 | Plug housing | INTERNE NUMMER | 1 | 61131382147 | $4.92 | Shop at ECS Tuning | ||||
