Outflow nozzles/covers for BMW 3 Series E36 328i (1998)

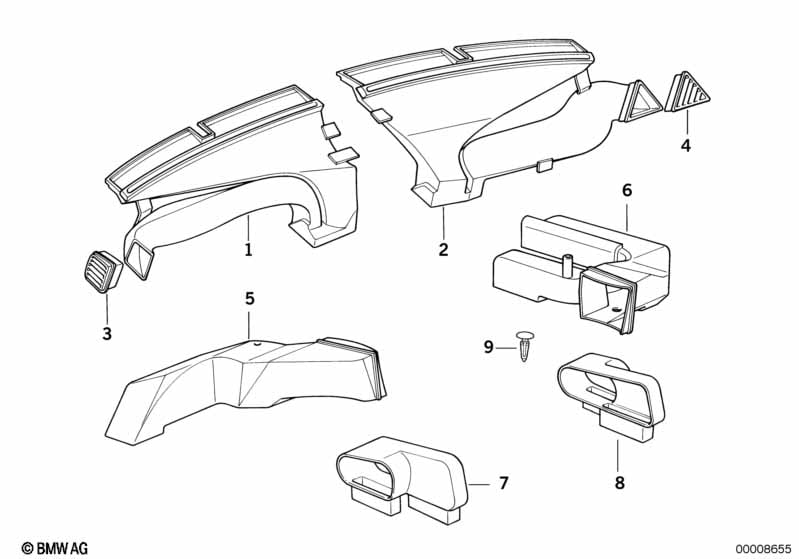

This Outflow nozzles/covers technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Defroster nozzle left | 1 | 64221977089 | $23.57 | Shop at ECS Tuning | |||||
| 02 | Defroster nozzle right | 1 | 64221977090 | $23.57 | Shop at ECS Tuning | |||||
| For vehicles with Airbag for front passenger |
=Yes |
|||||||||
| 02 | Defroster nozzle right | 1 | 64221977614 | $20.87 | Shop at ECS Tuning | |||||
| 03 | Covering left | SCHWARZ | 1 | 64228132301 | $5.23 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | SILBERGR.DUNKEL | 1 | 64228132303 | $5.38 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | ULTRAMARIN | 1 | 64228132305 | $7.92 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | PERGAM.DUNKEL | 1 | 64228132307 | $5.23 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | BRASIL | 1 | 64228132309 | $7.92 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | GRAU | 1 | 64228173631 | $5.23 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering left | BEIGE | 1 | 64228173633 | $6.38 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering right | SCHWARZ | 1 | 64228132302 | $5.23 | Shop at ECS Tuning | ||||
| 04 | Covering right | SILBERGR.DUNKEL | 1 | 64228132304 | $5.23 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering right | ULTRAMARIN | 1 | 64228132306 | $7.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering right | PERGAM.DUNKEL | 1 | 64228132308 | $5.23 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering right | BRASIL | 1 | 64228132310 | $7.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering right | BEIGE | 1 | 64228173632 | $5.23 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering right | GRAU | 1 | 64228173634 | $5.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag for front passenger |
=Yes |
|||||||||
| 04 | Covering right | SCHWARZ | 1 | 64228157982 | $5.23 | Shop at ECS Tuning | ||||
| 04 | Covering right | GRAU | 1 | 64228157986 | $5.23 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering right | BEIGE | 1 | 64228157988 | $5.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 05 | Heater duct left | 1 | 64228119165 | $22.87 | Shop at ECS Tuning | |||||
| 06 | Heater duct right | 1 | 64228119166 | $22.87 | Shop at ECS Tuning | |||||
| 07 | Heater duct left | 1 | 64111393323 | $8.53 | Shop at ECS Tuning | |||||
| 08 | Heater duct right | 1 | 64111393322 | $8.53 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 08 | Connection piece right | 1 | 64111393326 | $6.83 | Shop at ECS Tuning | |||||
| 08 | Connection piece left | 1 | 64111393327 | $2.68 | Shop at ECS Tuning | |||||
| 09 | Clip | 2 | 52101873544 | $0.20 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
