Drying container/small parts for BMW 3 Series E36 M3 (1998)

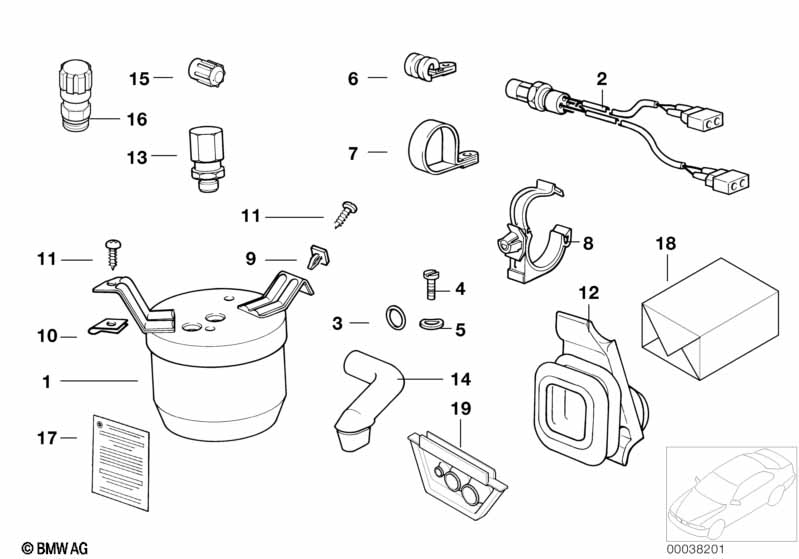

This Drying container/small parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drying container | 1 | 06/1997 | 64538375754 | $217.53 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO QI STICK-ON LABEL USED ON PART FITTED TO THE VEHICLE |
||||||||||
| 01 | Drying container | 1 | 09/1996 | 64538375754 | $217.53 | Shop at ECS Tuning | ||||
| 02 | Safety pressure switch | 1 | 01/1995 | 64538362055 | $110.43 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=7,65MM | 2 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=11.1MM | 5 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=14MM | 2 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=17,17MM | 2 | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | D=6.8 R12/R134A | 2 | 64508390605 | $2.51 | Shop at ECS Tuning | ||||
| 04 | ISA screw | M8X30-8.8-ZNS3 | 7 | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| 05 | Wave washer | 8,4X15-ZNS3 | 7 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Clamp | D=13/8,4 | 1 | 61131356639 | $2.83 | Shop at ECS Tuning | ||||
| 07 | Pipe clamp | D=45MM | 1 | 64531394285 | $1.56 | Shop at ECS Tuning | ||||
| 08 | Bracket suction pipe airconditioner | 1 | 64531394231 | $1.42 | Shop at ECS Tuning | |||||
| 09 | Expanding nut | ST 4.8 | 1 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST 4,8-4-ZNS3 | 1 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Hex head screw | ST4,8X16-ZNS3 | 2 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Grommet | 1 | 64531394236 | $4.16 | Shop at ECS Tuning | |||||
| 13 | Safety valve | 1 | 64538390872 | $21.57 | Shop at ECS Tuning | |||||
| 14 | Condensation water outlet hose | 1 | 64118371438 | $15.04 | Shop at ECS Tuning | |||||
| 15 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 15 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COOLANT R134A SUCTION PIPE |
||||||||||
| 16 | Valve insert, suction line | R134A | 1 | 64509177579 | $10.87 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COOLANT R134A PRESSURE HOSE ASSY |
||||||||||
| 16 | Valve insert, pressure line | R134A | 1 | 08/2003 | 64538391215 | $9.32 | ENDED | Shop at ECS Tuning | ||
| 16 | Valve insert, pressure line | R134A | 1 | 64509177577 | $10.87 | Shop at ECS Tuning | ||||
| 17 | Label "air condition" | 825 GRAMM | 1 | 64508367947 | $2.07 | Shop at ECS Tuning | ||||
| 18 | Set small parts f air cond.adjust.lever | BEHR | 1 | 64118362933 | $172.90 | Shop at ECS Tuning | ||||
| 18 | Set of small parts f heater adjust.lever | BEHR | 1 | 64118390245 | $7.03 | ENDED | Shop at ECS Tuning | |||
| 18 | Set small parts f air cond.adjust.lever | IHKR BEHR | 1 | 11/1994 | 64118361922 | $142.60 | Shop at ECS Tuning | |||
| 19 | Grommet | 1 | 64111393320 | $6.57 | Shop at ECS Tuning | |||||
