Outflow nozzles/covers for BMW 7 Series E38 740i (1996)

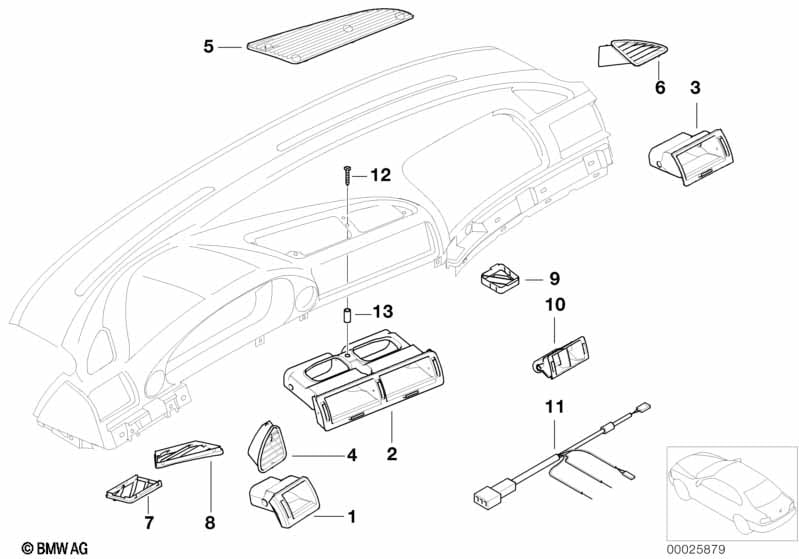

This Outflow nozzles/covers technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fresh air grille, left | SCHWARZ | 1 | 64228391587 | $154.67 | Shop at ECS Tuning | ||||
| 01 | Fresh air grille, left | DUNKELBLAU | 1 | 64228391589 | $154.67 | ENDED | Shop at ECS Tuning | |||
| 01 | Fresh air grille, left | SANDBEIGE | 1 | 64228391591 | $143.96 | ENDED | Shop at ECS Tuning | |||
| 01 | Fresh air grille, left | DUNKELGRUEN | 1 | 64228391593 | $151.05 | ENDED | Shop at ECS Tuning | |||
| 02 | Fresh air grille center | SCHWARZ | 1 | 09/1997 | 64228391579 | $251.10 | Shop at ECS Tuning | |||
| 02 | Fresh air grille center | DUNKELBLAU | 1 | 09/1997 | 64228391580 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Fresh air grille center | SANDBEIGE | 1 | 09/1997 | 64228391581 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Fresh air grille center | DUNKELGRUEN | 1 | 09/1997 | 64228391582 | $251.10 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 02 | Fresh air grille center | SCHWARZ | 1 | 64228391583 | $374.43 | Shop at ECS Tuning | ||||
| 02 | Fresh air grille center | DUNKELBLAU | 1 | 64228391584 | $266.81 | ENDED | Shop at ECS Tuning | |||
| 02 | Fresh air grille center | SANDBEIGE | 1 | 64228391585 | $374.43 | Shop at ECS Tuning | ||||
| 02 | Fresh air grille center | DUNKELGRUEN | 1 | 64228391586 | $374.43 | ENDED | Shop at ECS Tuning | |||
| 03 | Fresh air grille, right | SCHWARZ | 1 | 64228391596 | $154.67 | Shop at ECS Tuning | ||||
| 03 | Fresh air grille, right | DUNKELBLAU | 1 | 64228391598 | $142.41 | ENDED | Shop at ECS Tuning | |||
| 03 | Fresh air grille, right | SANDBEIGE | 1 | 64228391600 | $154.67 | ENDED | Shop at ECS Tuning | |||
| 03 | Fresh air grille, right | DUNKELGRUEN | 1 | 64228391602 | $51.32 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering defroster nozzle left | SCHWARZ | 1 | 64228183847 | $26.67 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering defroster nozzle left | DUNKELBLAU | 1 | 64228183849 | $26.67 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering defroster nozzle left | SANDBEIGE | 1 | 64228183851 | $26.67 | ENDED | Shop at ECS Tuning | |||
| 04 | Covering defroster nozzle left | DUNKELGRUEN | 1 | 64228183853 | $6.36 | ENDED | Shop at ECS Tuning | |||
| 05 | Fresh air grille, indirect | SCHWARZ | 1 | 03/1999 | 64228391603 | $37.86 | ENDED | Shop at ECS Tuning | ||
| 05 | Fresh air grille, indirect | DUNKELBLAU | 1 | 03/1999 | 64228391604 | $10.36 | Shop at ECS Tuning | |||
| 05 | Fresh air grille, indirect | SANDBEIGE | 1 | 03/1999 | 64228391605 | $10.36 | Shop at ECS Tuning | |||
| 05 | Fresh air grille, indirect | DUNKELGRUEN | 1 | 03/1999 | 64228391606 | $10.36 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering defroster nozzle right | SCHWARZ | 1 | 64228183848 | $26.67 | Shop at ECS Tuning | ||||
| 06 | Covering defroster nozzle right | DUNKELBLAU | 1 | 64228183850 | $26.67 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering defroster nozzle right | SANDBEIGE | 1 | 64228183852 | $26.67 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering defroster nozzle right | DUNKELGRUEN | 1 | 64228183854 | $26.67 | ENDED | Shop at ECS Tuning | |||
| 07 | Exterior left floor heater duct cover | 1 | 64228161579 | $1.85 | ENDED | Shop at ECS Tuning | ||||
| 08 | Left floor heater duct cover | 1 | 64228161577 | $1.85 | Shop at ECS Tuning | |||||
| 10 | Fresh air grille rear room | SCHWARZ | 1 | 09/1997 | 64228391618 | $127.86 | ENDED | Shop at ECS Tuning | ||
| 10 | Fresh air grille rear room | DUNKELBLAU | 1 | 09/1997 | 64228391619 | $53.01 | ENDED | Shop at ECS Tuning | ||
| 10 | Fresh air grille rear room | SANDBEIGE | 1 | 09/1997 | 64228391620 | $55.88 | ENDED | Shop at ECS Tuning | ||
| 10 | Fresh air grille rear room | DUNKELGRUEN | 1 | 09/1997 | 64228391621 | $53.01 | ENDED | Shop at ECS Tuning | ||
| 10 | Fresh air grille rear room | GRAU | 1 | 09/1997 | 64228391622 | $53.01 | ENDED | Shop at ECS Tuning | ||
| 10 | Fresh air grille rear room | LAVENDELGRAU | 1 | 09/1997 | 64228391623 | $53.01 | ENDED | Shop at ECS Tuning | ||
| 10 | Fresh air grille rear room | PASTELLGRUEN | 1 | 09/1997 | 64228391624 | $53.01 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 10 | Fresh air grille rear room | PEARLBEIGE | 1 | 64228386659 | $127.86 | +core | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | SCHWARZ | 1 | 64228391611 | $175.63 | ENDED | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | DUNKELBLAU | 1 | 64228391612 | $127.86 | ENDED | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | SANDBEIGE | 1 | 64228391613 | $175.63 | ENDED | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | DUNKELGRUEN | 1 | 64228391614 | $127.86 | ENDED | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | GRAU | 1 | 64228391615 | $127.86 | ENDED | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | LAVENDELGRAU | 1 | 64228391616 | $131.66 | ENDED | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | PASTELLGRUEN | 1 | 64228391617 | $98.21 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning, rear and Automatic air conditioning |
S533A=Yes S534A=Yes |
|||||||||
| 10 | Fresh air grille rear room | SCHWARZ | 1 | 64228368287 | $59.18 | +core | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | MARINEBLAU | 1 | 64228368288 | $59.18 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | SANDBEIGE | 1 | 64228368289 | $59.18 | +core | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | ENGL.GRÜN | 1 | 64228368290 | $59.18 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | GRAU | 1 | 64228368291 | $59.18 | +core | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | LAVENDELGRAU | 1 | 64228368292 | $59.18 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | PASTELLGRÜN | 1 | 64228368293 | $53.01 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Fresh air grille rear room | PEARLBEIGE | 1 | 64228386660 | $59.18 | ENDED, +core | Shop at ECS Tuning | |||
| 11 | Fresh air grille wiring set | 1 | 61128352654 | $104.51 | Shop at ECS Tuning | |||||
| 12 | Sheet metal screw | ST4,8X38-R-ZNFE | 1 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| 13 | Bush | 1 | 51458367912 | $3.97 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
