Control unit air condition./limit switch for BMW 5 Series E34 520i (1993)

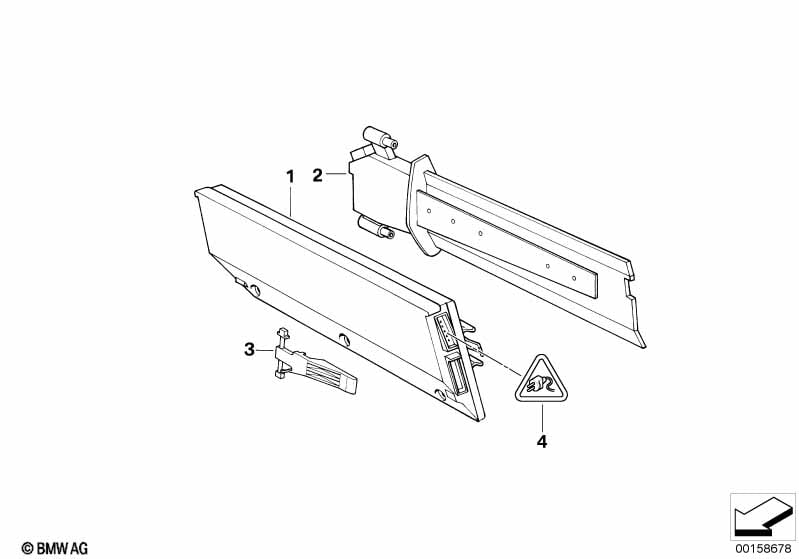

This Control unit air condition./limit switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Uncoded control unit f air condit. | 1 | 01/1990 | 64118367951 | $573.71 | ENDED | Shop at ECS Tuning | |||
| 01 | Uncoded control unit f air condit. | 1 | 11/1990 | 64118367951 | $573.71 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Automatic air conditioning |
=Yes |
|||||||||
| 01 | Control unit f autom.air conditioning | 1 | 06/1990 | 64118367839 | $1093.22 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning and Microfiltre |
=Yes =Yes |
|||||||||
| 01 | Control unit f autom.air conditioning | 1 | 06/1990 | 64118367839 | $1093.22 | Shop at ECS Tuning | ||||
| 02 | Limit switch | 1 | 64118390015 | $873.33 | Shop at ECS Tuning | |||||
| 03 | Clamp | 1 | 64111379716 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 04 | Universal socket housing uncoded | 26 POL. | 1 | 61136913626 | $1.05 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 26 POL. | 1 | 61132471242 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
