Control unit air condition./limit switch for BMW 7 Series E32 740i (1994)

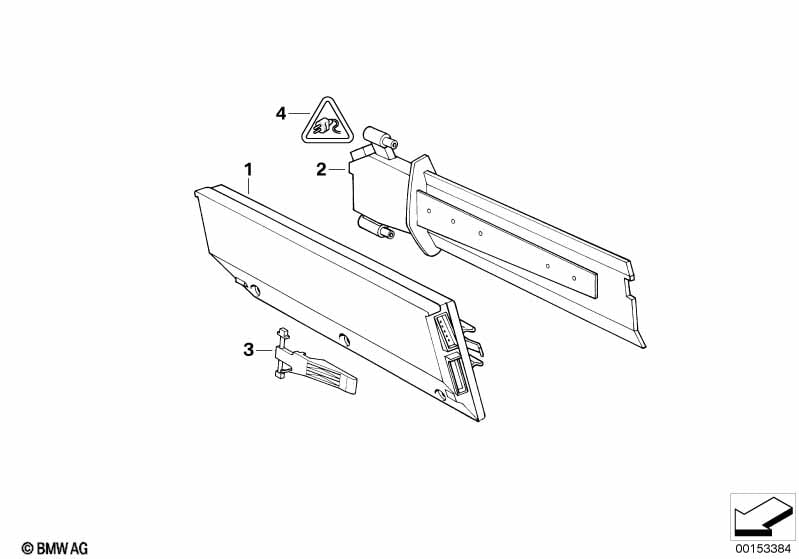

This Control unit air condition./limit switch technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit f heater control | 1 | 06/1990 | 64111390906 | $1063.13 | Shop at ECS Tuning | ||||
| 01 | Control unit f autom.air conditioning | 1 | 06/1990 | 64118367839 | $1093.22 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SIEMENS | ||||||||||
| 02 | Limit switch | 1 | 64111388202 | $378.32 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO BEHR | ||||||||||
| 02 | Limit switch | 1 | 64118390015 | $873.33 | Shop at ECS Tuning | |||||
| 03 | Clamp | 1 | 64111379716 | $5.02 | ENDED | Shop at ECS Tuning | ||||
| 04 | Socket housing | 5 POL. | 1 | 61138377762 | $1.52 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 | 2,5-4,0MM² | 5 | 61131376206 | $0.98 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 740i Control unit air condition./limit switch?
- This technical diagram illustrates the Control unit air condition./limit switch within the Heater and Air Conditioning group for the 7 Series E32 740i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Control unit f heater control (Part #64111390906).
- Which models use the hardware listed in this Control unit air condition./limit switch?
- The hardware and components featured in the Control unit air condition./limit switch are specific to the 7 Series E32 740i produced during 1994. These technical specifications ensure that parts like the Control unit f heater control (64111390906) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit air condition./limit switch assembly?
- Each item in the Control unit air condition./limit switch corresponds to the numbered list below the illustration. For the 7 Series E32 740i, you can identify the Control unit f heater control by locating its position on the schematic, which then links to the official BMW part number 64111390906 for the Heater and Air Conditioning section.
